SY-72-S

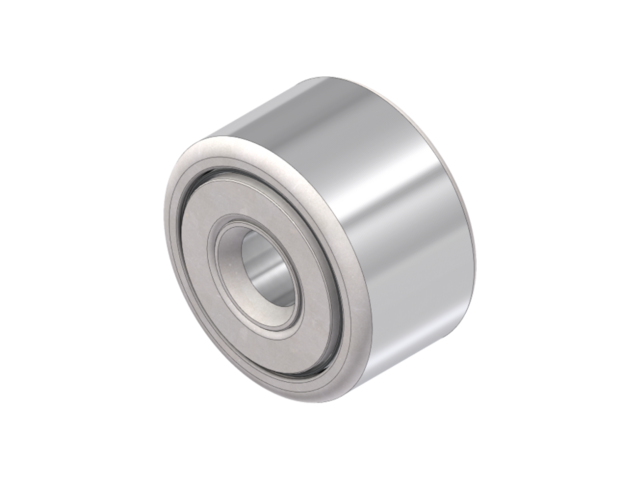

SY-S -Standard Stainless Cylindrical Sealed Yolk Roller

Specifications

ID SY-72-S

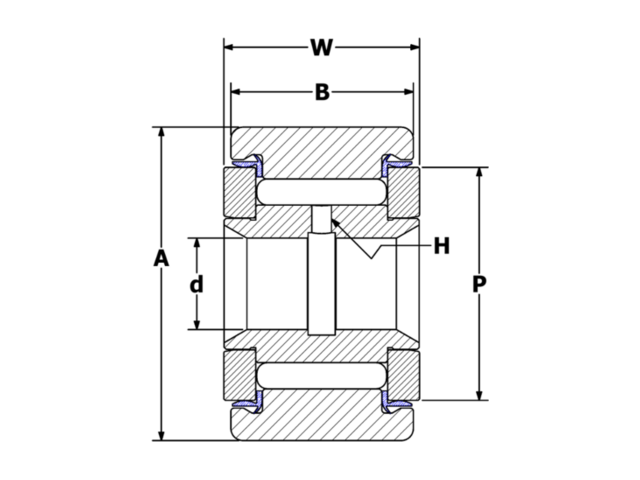

Roller O.D. A 2.250
Roller Width B 1.250
Bore Diameter d 0.625
Overall Width W 1.3125
Oil Hole Diameter H 1/8
Min. Boss Diameter P 1 13/64
Shaft Diameter(Ø) Push Fit 0.6245
Shaft Diameter(Ø) Drive Fit 0.6251
Shaft Diameter(Ø) Press Fit 0.6255
Max Static Capacity (lbf) 17,600
Basic Dynamic Rating (lbf) 7,270
Limiting Speed (RPM) 1,300
