SY-60-S

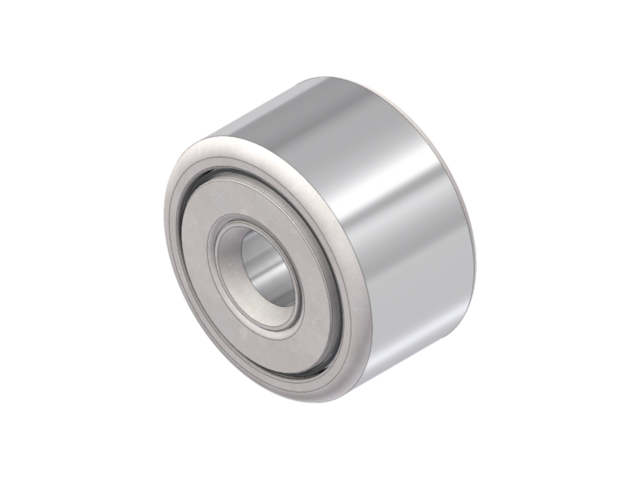

SY-S -Standard Stainless Cylindrical Sealed Yolk Roller

Specifications

ID SY-60-S

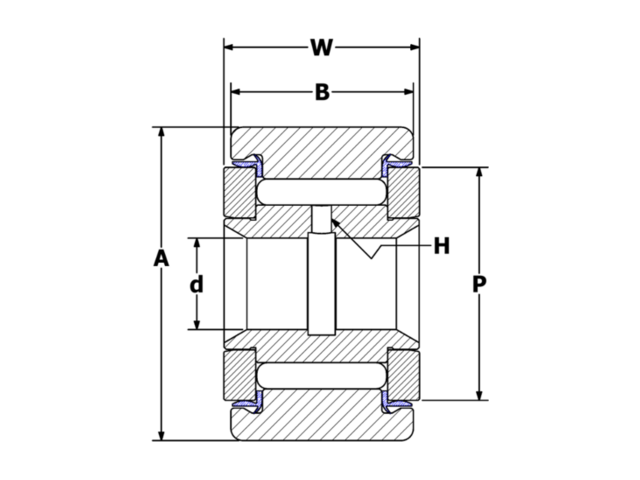

Roller O.D. A 1.875
Roller Width B 1.000
Bore Diameter d 0.500
Overall Width W 1.0625
Oil Hole Diameter H 3/32
Min. Boss Diameter P 1 3/64
Shaft Diameter(Ø) Push Fit 0.4995
Shaft Diameter(Ø) Drive Fit 0.5001
Shaft Diameter(Ø) Press Fit 0.5005
Max Static Capacity (lbf) 14,800
Basic Dynamic Rating (lbf) 5,730
Limiting Speed (RPM) 2,000
