SY-32-S

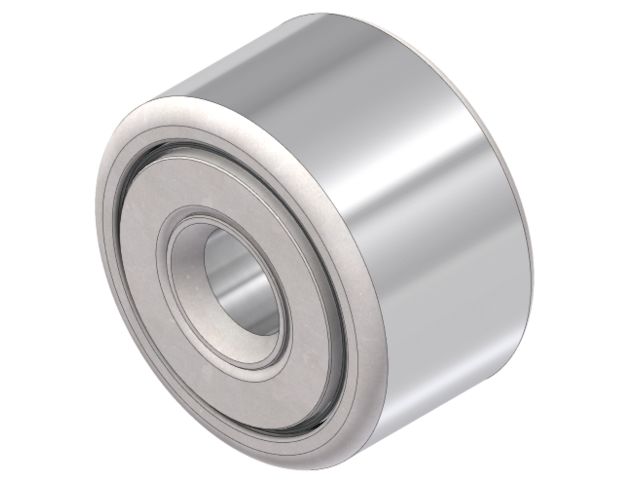

SY-S -Standard Stainless Cylindrical Sealed Yolk Roller

Specifications

ID SY-32-S

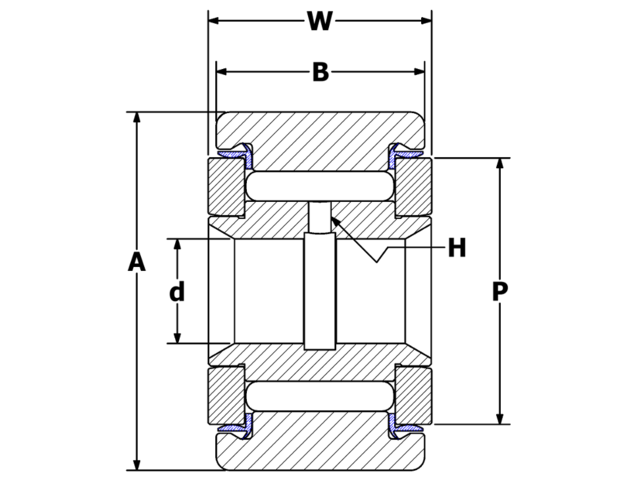

Roller O.D. A 1.000
Roller Width B 0.625
Bore Diameter d 0.313
Overall Width W 0.6875
Oil Hole Diameter H 3/32
Min. Boss Diameter P 41/64
Shaft Diameter(Ø) Push Fit 0.3120
Shaft Diameter(Ø) Drive Fit 0.3126
Shaft Diameter(Ø) Press Fit 0.3128
Max Static Capacity (lbf) 5,400
Basic Dynamic Rating (lbf) 2,000
