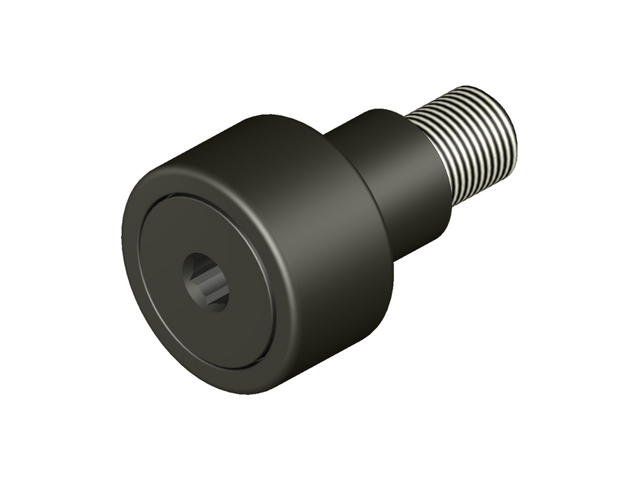

SFHE-96-B

SFHE-A -Standard Neverlube Cam Follower Eccentric

Please call 616-842-8760 for price and availability

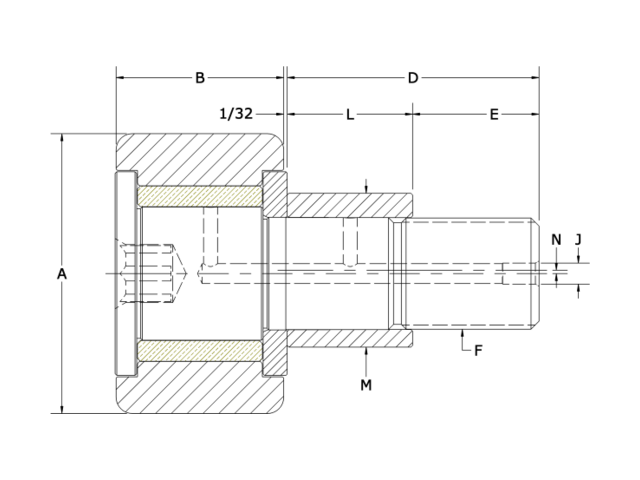

Specifications

New* SFHE-96-B
Old SFWE-96-A
Roller O.D. A 3.000
Roller Width B 1.750
Stud Diameter C 1.250
Stud Length D 2.500
Thread Length E 1 1/4
Thread Class 2A F 1 1/4-12
Hex Size X 1/2
Bushing Length L 1.250
Bushing Diameter M 1.750
Eccentric offset N 0.060
Min. Boss Diameter 1 3/4
Mounting Bore Diameter (recommended) 1.753
**Recom. Torque Inch Pounds 3,450
Load Factor 2.000

Downloads

SFHE-96-B 2D CAD Drawing

3D View
