SFHE-88-B

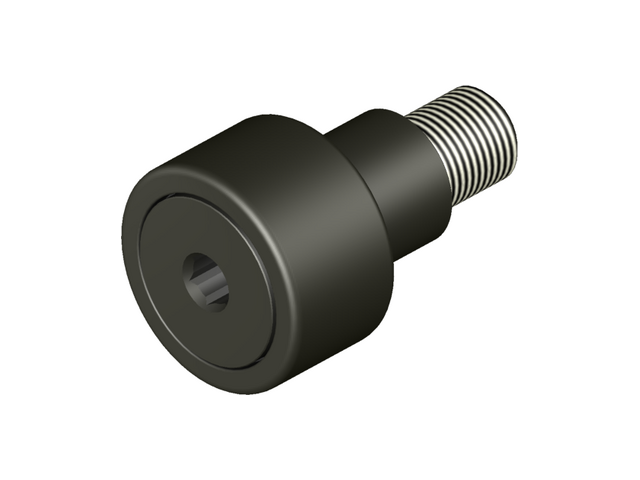

SFHE-A -Standard Neverlube Cam Follower Eccentric

Please call 616-842-8760 for price and availability

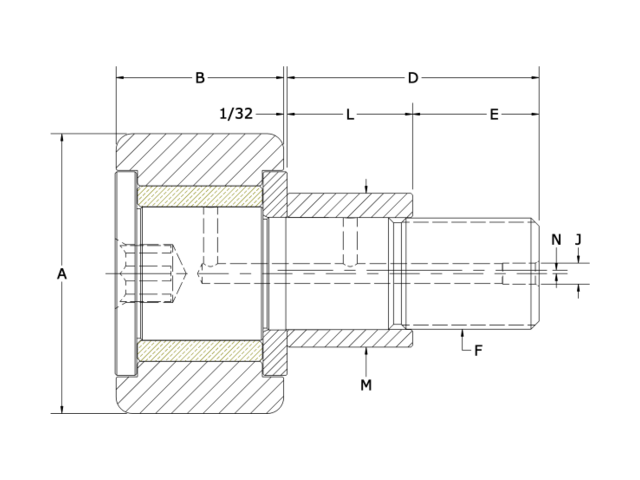

Specifications

New* SFHE-88-B
Old SFWE-88-A
Roller O.D. A 2.750
Roller Width B 1.500
Stud Diameter C 1.000
Stud Length D 2.250
Thread Length E 1 1/8
Thread Class 2A F 1-14
Hex Size X 3/8
Bushing Length L 1.125
Bushing Diameter M 1.375
Eccentric offset N 0.030
Min. Boss Diameter 1 5/16
Mounting Bore Diameter (recommended) 1.378
**Recom. Torque Inch Pounds 2,250
Load Factor 1.560

Downloads

SFHE-88-B 2D CAD Drawing

3D View
