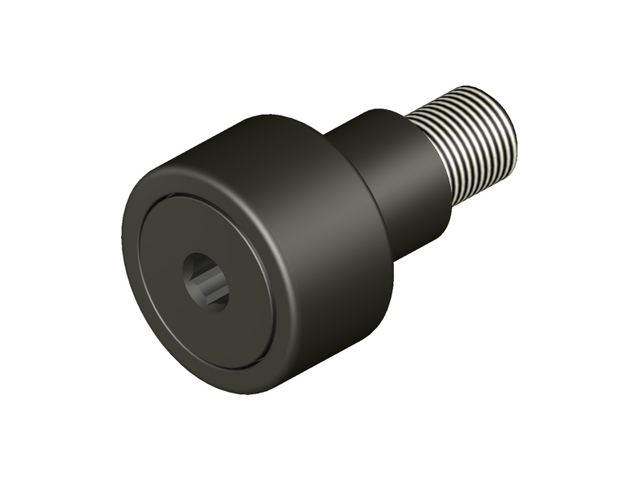

SFHE-80-B

SFHE-A -Standard Neverlube Cam Follower Eccentric

2D Drawings

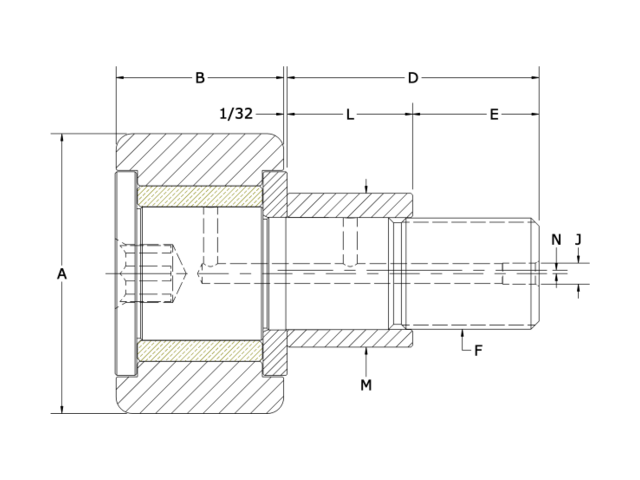

SFHE-80-B 2D CAD Drawing

Specifications

New* SFHE-80-B
Old SFWE-80-A
Roller O.D. A 2.500
Roller Width B 1.500
Stud Length D 2.250
Thread Length E 1 1/8
Thread Class 2A F 1-14
Hex Size X 3/8
Bushing Length L 1.125
Bushing Diameter M 1.375
Eccentric offset N 0.030
Min. Boss Diameter 1 5/16
Mounting Bore Diameter (recommended) 1.378
**Recom. Torque Inch Pounds 1125
Load Factor 1.560

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
