SFHE-60-A

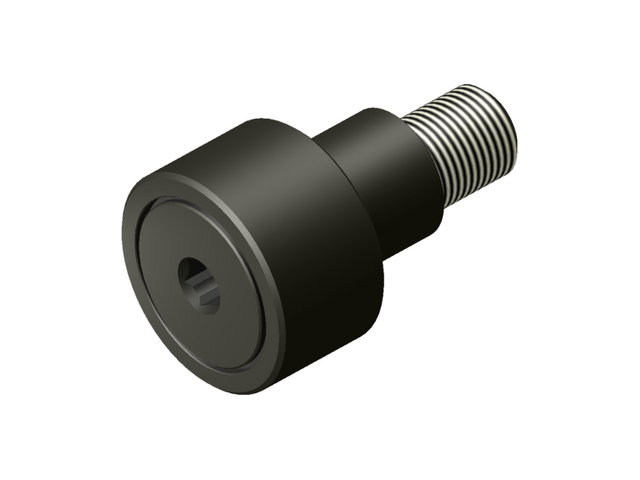

SFHE-A -Standard Neverlube Cam Follower Eccentric
$80.45
SFHE-60-A
131 in stock
Specifications

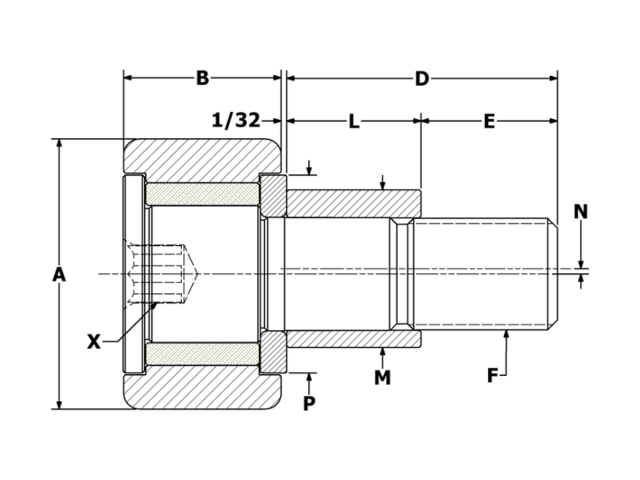

| Attribute | Callout | Value |
|---|---|---|
| Roller O.D. | A | 1.875 in |
| Roller Width | B | 1.000 in |
| Stud Length | D | 1.750 in |
| M.E.T. | E | 7/8 in |
| Thread Class 2A | F | 3/4-16 |
| Bushing Length | L | 0.875 in |
| Bushing Diameter | M | 1.000 in |
| Eccentric Offset | N | 0.030 in |
| Hex Size | X | 5/16 in |
| Approx Weight | 0.974 lbs | |
| Load Factor | 0.700 | |
| Mounting Bore | 1.003 in | |
| Torque | 625 in-lb |
