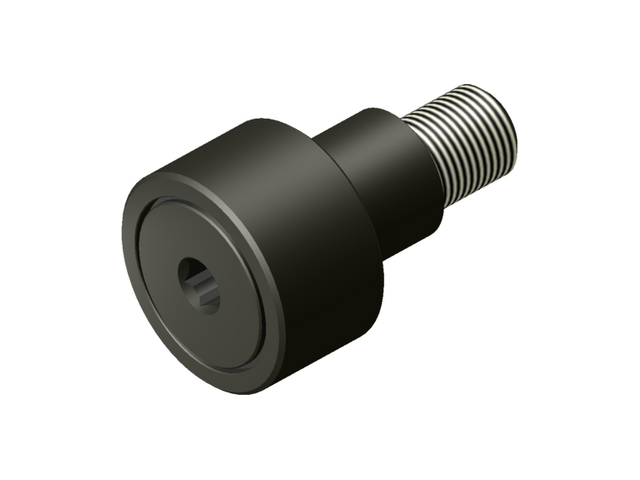

SFHE-44-A

SFHE-A -Standard Neverlube Cam Follower Eccentric

Please call 616-842-8760 for price and availability

Specifications

New* SFHE-44-A
Old SFWE-44-A

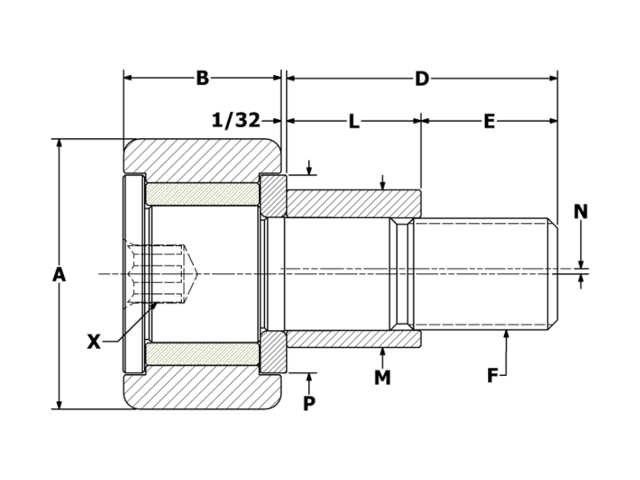

Roller O.D. A 1.375
Roller Width B 0.750
Stud Diameter C 0.500
Stud Length D 1.250
Thread Length E 5/8
Thread Class 2A F 1/2-20
Hex Size X 5/16
Bushing Length L 0.625
Bushing Diameter M 0.687
Eccentric offset N 0.030
Min. Boss Diameter 49/64
Mounting Bore Diameter (recommended) 0.690
**Recom. Torque Inch Pounds 350
Load Factor 0.391

Downloads

SFHE-44-A STP File

SFHE-44-A IGES File

SFHE-44-A PDF File

3D View
