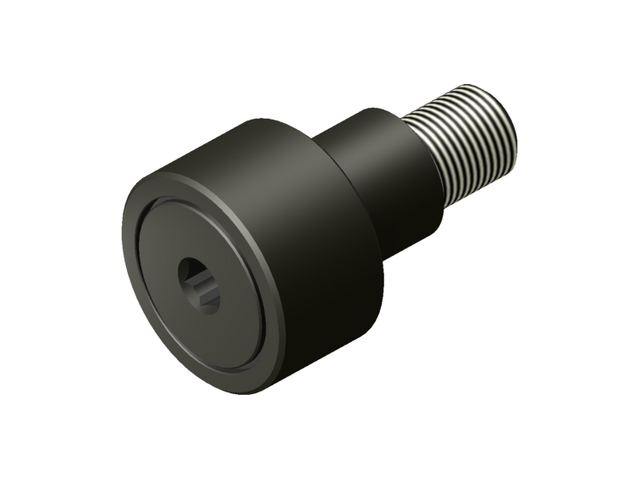

SFHE-36-A

SFHE-A -Standard Neverlube Cam Follower Eccentric

Please call 616-842-8760 for price and availability

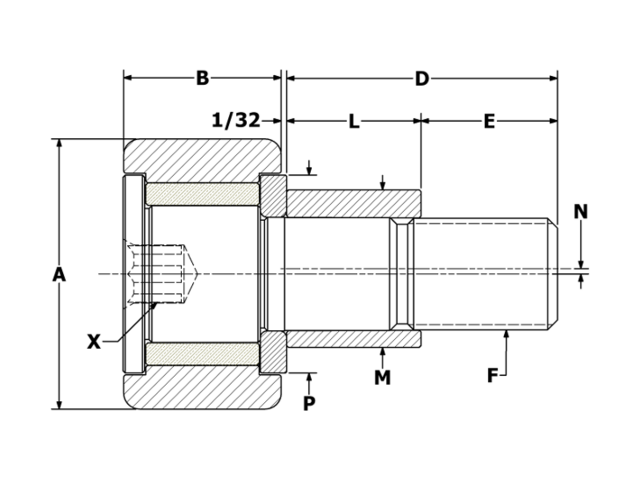

Specifications

New* SFHE-36-A
Old SFWE-36-A
Roller O.D. A 1.125
Roller Width B 0.625
Stud Diameter C 0.4375
Stud Length D 1.000
Thread Length E 1/2
Thread Class 2A F 7/16-20
Hex Size X 1/4
Bushing Length L 0.500
Bushing Diameter M 0.625
Eccentric offset N 0.030
Min. Boss Diameter 41/64
Mounting Bore Diameter (recommended) 0.628
**Recom. Torque Inch Pounds 250
Load Factor 0.250
