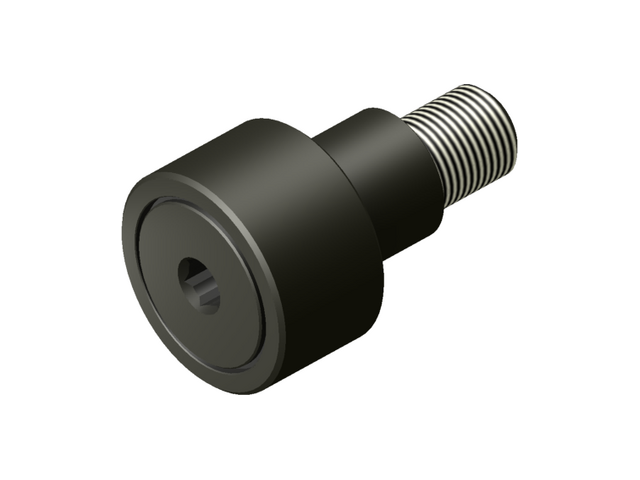

SFHE-20-A

SFHE-A -Standard Neverlube Cam Follower Eccentric

Please call 616-842-8760 for price and availability

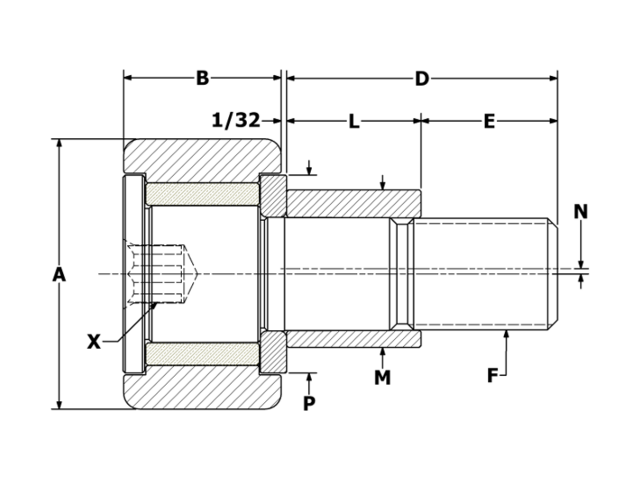

Specifications

New* SFHE-20-A
Old SFWE-20-A
Roller O.D. A 0.625
Roller Width B 0.4375
Stud Diameter C 0.250
Stud Length D 0.750
Thread Length E 1/3
Thread Class 2A F 1/4-28
Hex Size X 1/8
Bushing Length L 0.437
Bushing Diameter M 0.375
Eccentric offset N 0.015
Min. Boss Diameter 23/64
Mounting Bore Diameter (recommended) 0.378
**Recom. Torque Inch Pounds 35
Load Factor 0.097
