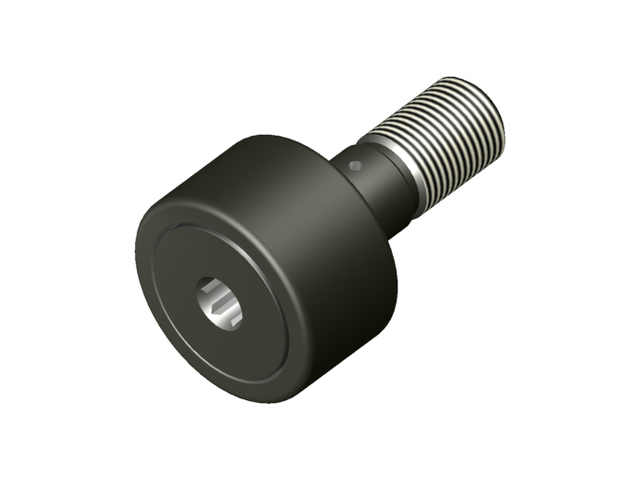

SFH-96-B

SFH-A -Standard Neverlube Cam Follower

Please call 616-842-8760 for price and availability

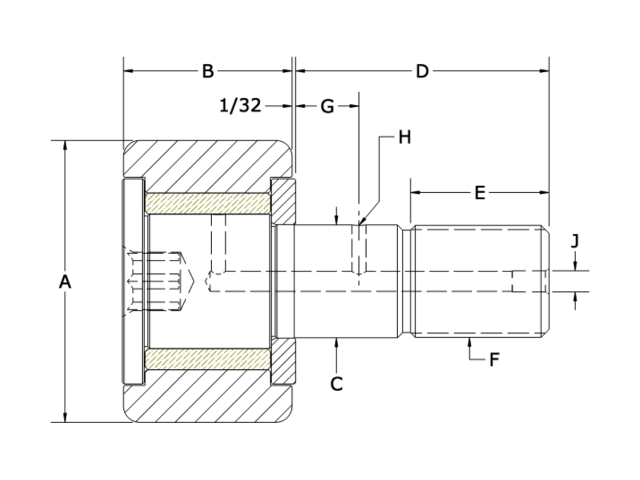

Specifications

New* SFH-96-B
Old SFH-96-A
Roller O.D. A 3.000
Roller Width B 1.750
Stud Diameter C 1.250
Stud Length D 2.500
M.E.T. E 1 1/4
Thread Class 2A F 1 1/4-12
Hex Size X 1/2
Min. Boss Diameter 1 3/4
Mounting Bore Diameter (recommended) 1.250
**Recom. Torque Inch Pounds 3,450
Load Factor 2.000

Downloads

SFH-96-B STP File

SFH-96-B IGES File

SFH-96-B PDF File

3D View
