SFH-88-B

SFH-A -Standard Neverlube Cam Follower

Please call 616-842-8760 for price and availability

Specifications

New* SFH-88-B
Old SFH-88-A
Roller O.D. A 2.750
Roller Width B 1.500
Stud Diameter C 1.000
Stud Length D 2.250
M.E.T. E 1 1/8
Thread Class 2A F 1-14
Hex Size X 3/8
Min. Boss Diameter 1 5/16
Mounting Bore Diameter (recommended) 1.000
**Recom. Torque Inch Pounds 2,250
Load Factor 1.560

Downloads

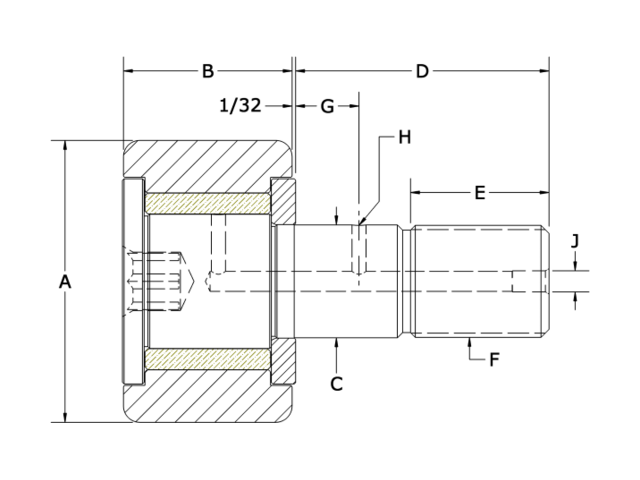

SFH-88-B 2D CAD Drawing

3D View
