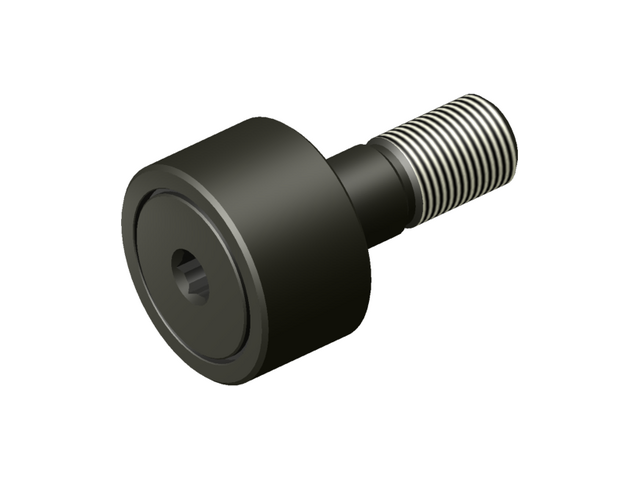

SFH-72-A

SFH-A -Standard Neverlube Cam Follower

Specifications

New* SFH-72-A
Old SFH-72-A
Roller O.D. A 2.250
Roller Width B 1.250
Stud Diameter C 0.875
Stud Length D 2.000
M.E.T. E 1
Thread Class 2A F 7/8-14
Hex Size X 3/8
Min. Boss Diameter 1 13/64
Mounting Bore Diameter (recommended) 0.875
**Recom. Torque Inch Pounds 750
Load Factor 0.984

Downloads

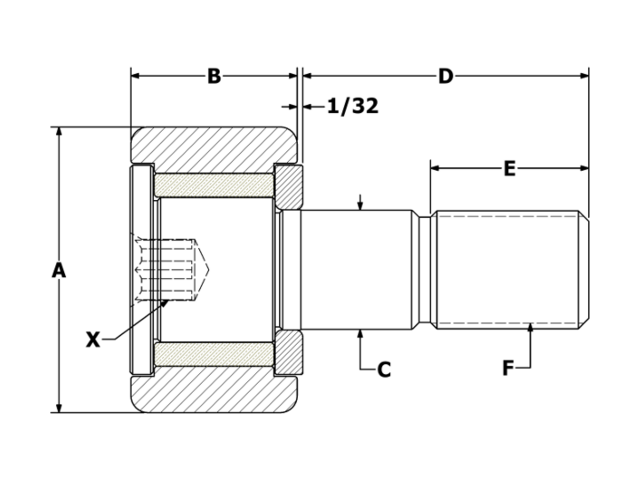

SFH-72-A 2D CAD Drawing

3D View
