SFH-48-A

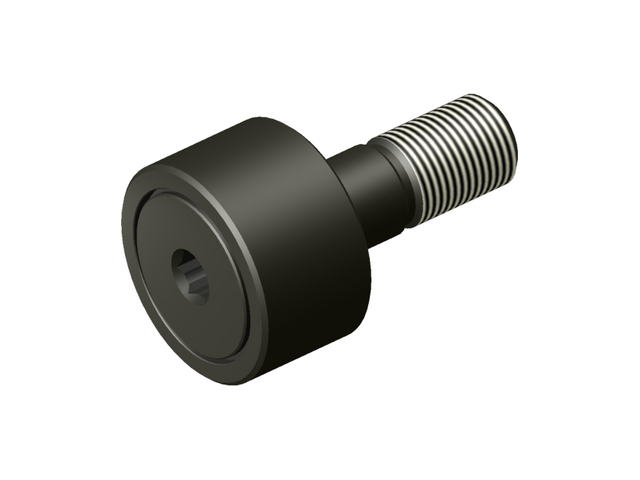

SFH-A -Standard Neverlube Cam Follower

Please call 616-842-8760 for price and availability

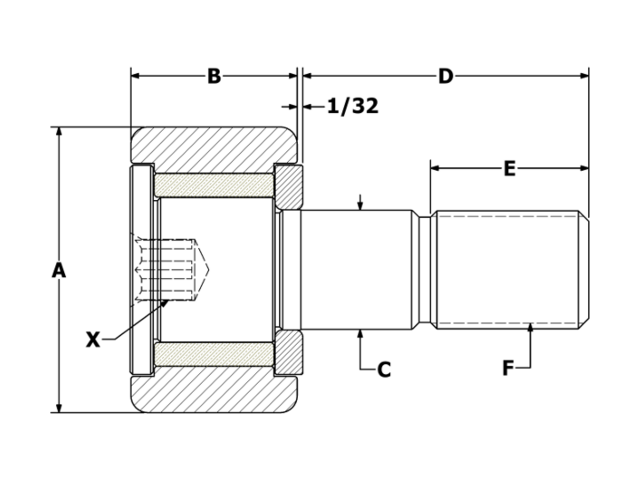

Specifications

New* SFH-48-A
Old SFH-48-A
Roller O.D. A 1.500
Roller Width B 0.875
Stud Diameter C 0.625
Stud Length D 1.500
M.E.T. E 3/4
Thread Class 2A F 5/8-18
Hex Size X 5/16
Min. Boss Diameter 57/64
Mounting Bore Diameter (recommended) 0.625
**Recom. Torque Inch Pounds 650
Load Factor 0.544

Downloads

SFH-48-A 2D CAD Drawing

3D View
