SFH-32-A

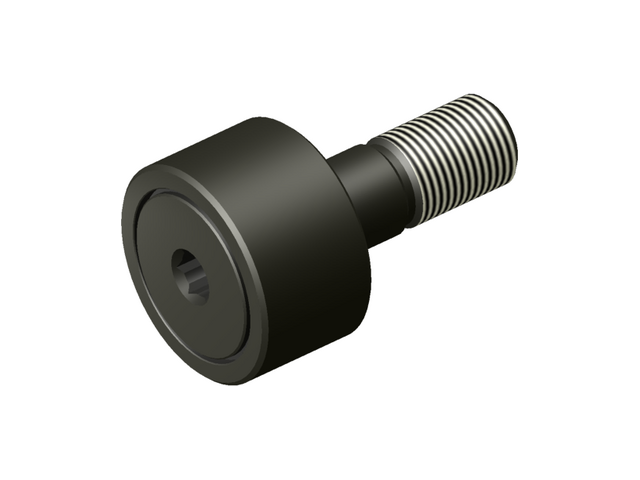

SFH-A -Standard Neverlube Cam Follower

Specifications

New* SFH-32-A
Old SFH-32-A

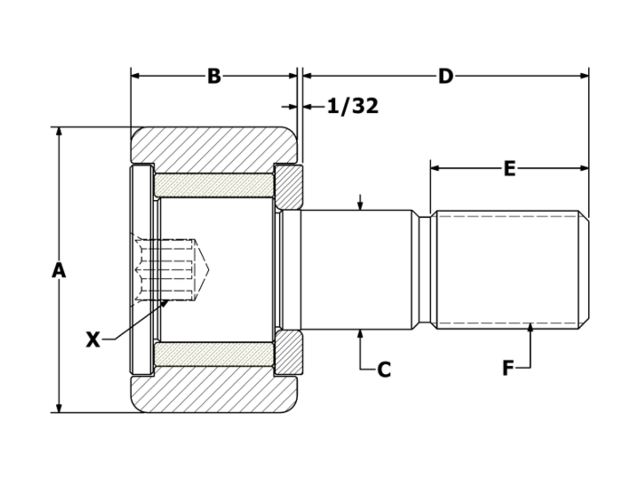

Roller O.D. A 1.000
Roller Width B 0.625
Stud Diameter C 0.4375
Stud Length D 1.000
M.E.T. E 1/2
Thread Class 2A F 7/16-20
Hex Size X 1/4
Min. Boss Diameter 41/64
Mounting Bore Diameter (recommended) 0.438
**Recom. Torque Inch Pounds 250
Load Factor 0.250
