SFH-20-A

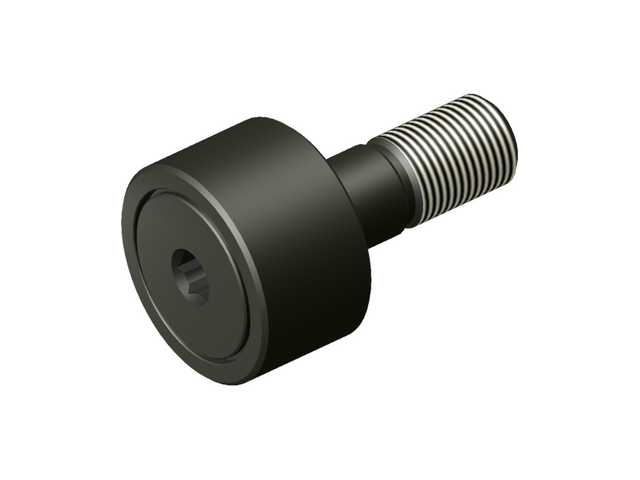

SFH-A -Standard Neverlube Cam Follower

Please call 616-842-8760 for price and availability

Specifications

New* SFH-20-A
Old SFH-20-A

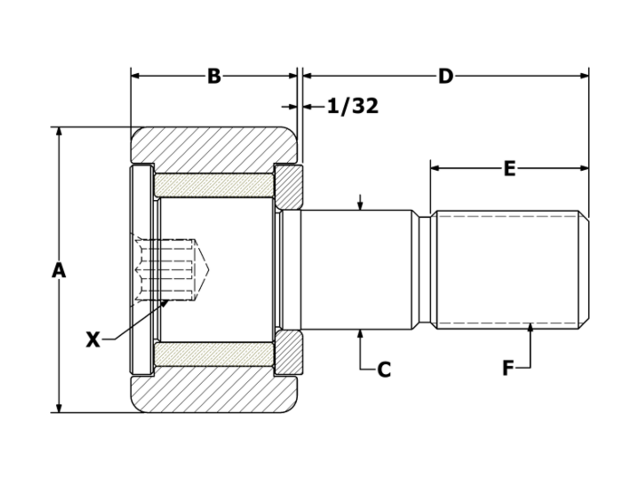

Roller O.D. A 0.625
Roller Width B 0.4375
Stud Diameter C 0.250
Stud Length D 0.750
M.E.T. E 1/3
Thread Class 2A F 1/4-28
Hex Size X 1/8
Min. Boss Diameter 23/64
Mounting Bore Diameter (recommended) 0.250
**Recom. Torque Inch Pounds 35
Load Factor 0.097

Downloads

SFH-20-A 2D CAD Drawing

3D View
