SFH-128-B

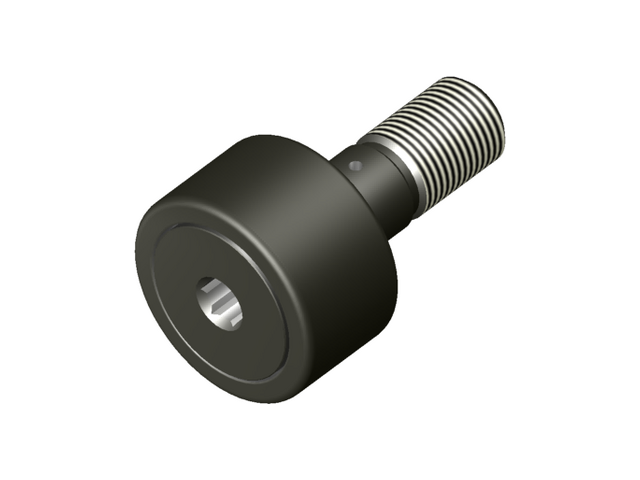

SFH-A -Standard Neverlube Cam Follower

Please call 616-842-8760 for price and availability

Specifications

New* SFH-128-B
Old SFH-128-A

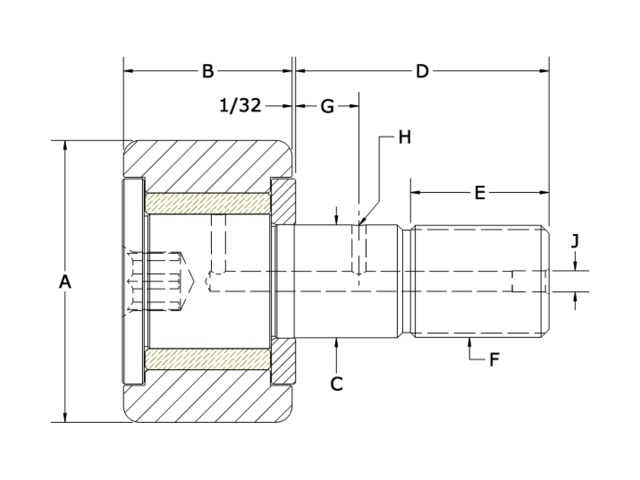

Roller O.D. A 4.000
Roller Width B 2.250
Stud Diameter C 1.500
Stud Length D 3.500
M.E.T. E 1 1/2
Thread Class 2A F 1 1/2-12
Hex Size X 1/2
Min. Boss Diameter 2 9/32
Mounting Bore Diameter (recommended) 1.500
**Recom. Torque Inch Pounds 5,000
Load Factor 3.250

Downloads

SFH-128-B STP File

SFH-128-B IGES File

SFH-128-B PDF File

3D View
