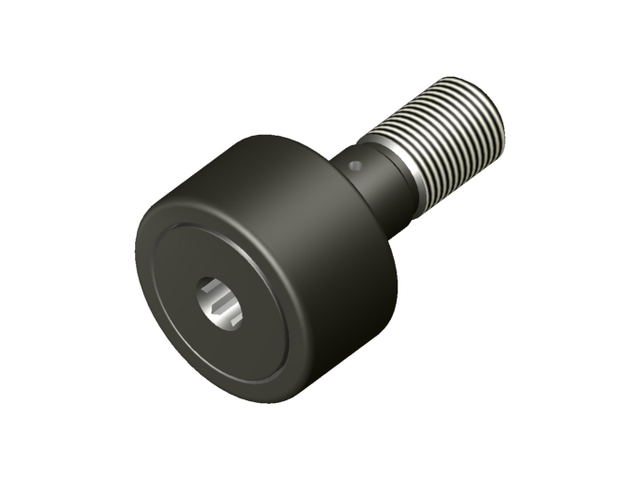

SFH-A -Standard Neverlube Cam Follower

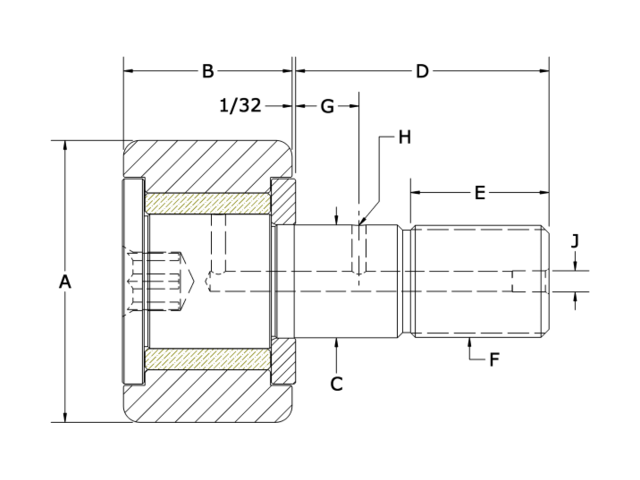

2D Drawings

SFH-112-B 2D CAD Drawing


New* SFH-112-B
Old SFH-112-A
Roller O.D. A 3.500
Roller Width B 2.000
Stud Diameter C 1.375
Stud Length D 2.750
M.E.T. E 1 3/8
Thread Class 2A F 1 3/8-12
Hex Size X 1/2
Min. Boss Diameter 1 59/64
Mounting Bore Diameter (recommended) 1.375
**Recom. Torque Inch Pounds 2100
Load Factor 2.700

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
