SC-48-SB

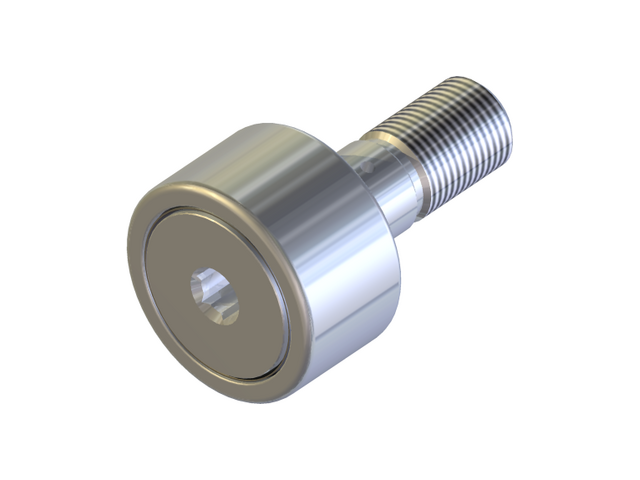

SC-SB -Standard Stainless Hexed Sealed Cam Follower

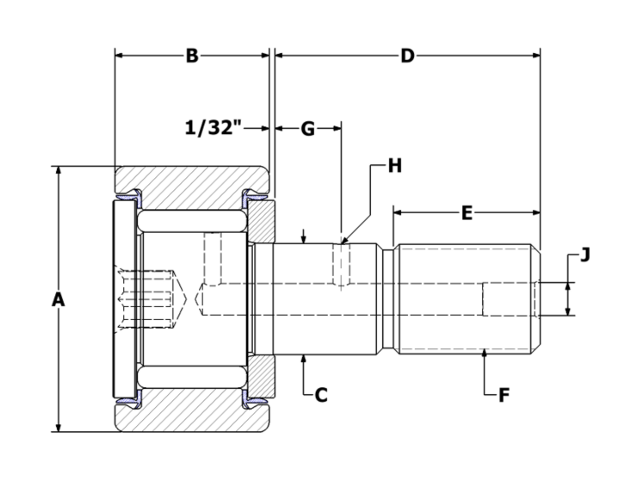

Specifications

ID SC-48-SB
Roller O.D. A 1.500
Roller Width B 0.875
Stud Diameter C 0.625
Stud Length D 1.500
M.E.T. E 3/4
Thread Class 2A F 5/8-18
Oil Hole Center G 3/8
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 57/64
Mounting Bore Diameter (recommended) 0.625
**Recom. Torque Inch Pounds 325
Max Static Capacity (lbf) 4,000
Basic Dynamic Rating (lbf) 4,350
