SC-20-SB

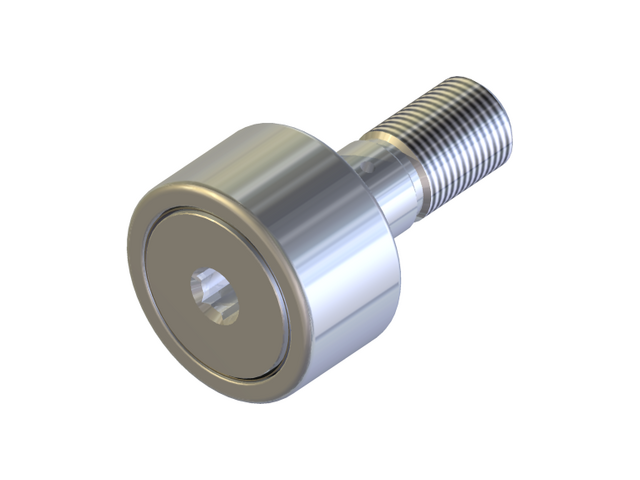

SC-SB -Standard Stainless Hexed Sealed Cam Follower

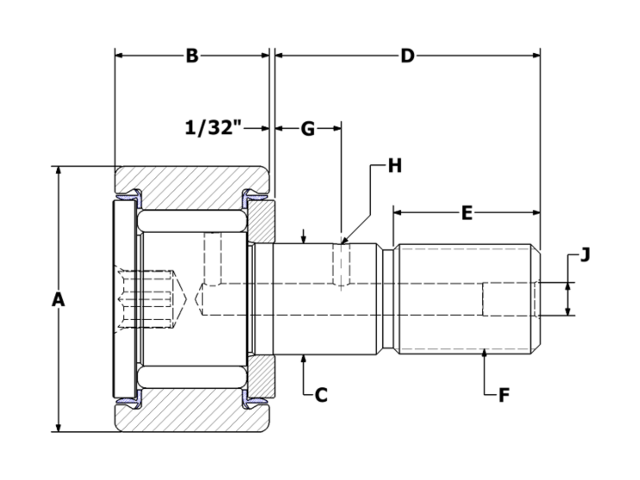

Specifications

ID SC-20-SB
Roller O.D. A 0.625
Roller Width B 0.4375
Stud Diameter C 0.250
Stud Length D 0.750
M.E.T. E 5/16
Thread Class 2A F 1/4-28
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J ~
Min. Boss Diameter 23/64
Mounting Bore Diameter (recommended) 0.250
**Recom. Torque Inch Pounds 18
Max Static Capacity (lbf) 600
Basic Dynamic Rating (lbf) 860

Downloads

SC-20-SB STP File

SC-20-SB IGES File

SC-20-SB PDF File

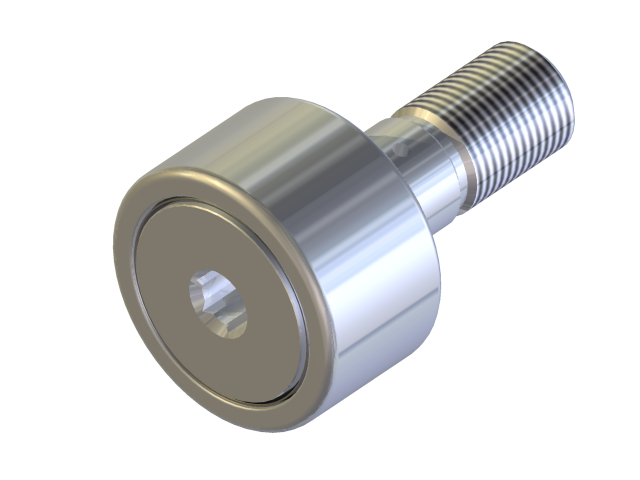

3D View
