PHRY-400-A

PHRY-A -Plain Yoke High Roller

PDF Download

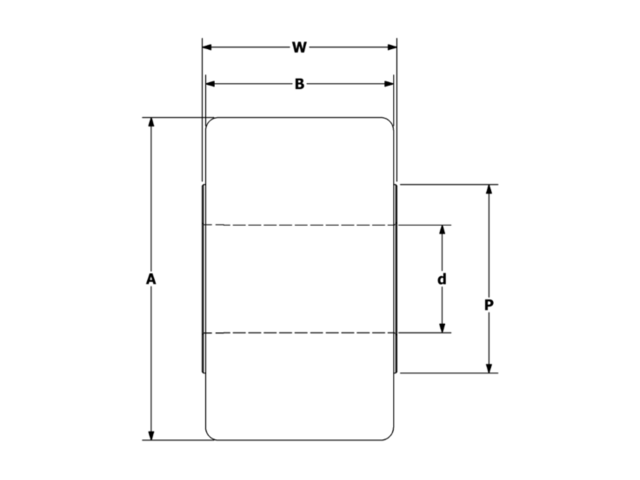

PHRY-400-A 2D CAD Drawing

Specifications

ID PHRY-400-A
Roller O.D. A 4.000
Tread Width B 2.250
Bore Diameter d 1.250
Overall Roller Width W 2.312
End Plate & Flange Diameter P 2 1/4
Max Static Capacity (lbf) 27,200
Basic Dynamic Rating (lbf) 17,590
Thrust Capacity (lbf) 13,100
Ball(BB) or Tapered(TRB) Roller Bearing TRB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
