PHRY-350-A

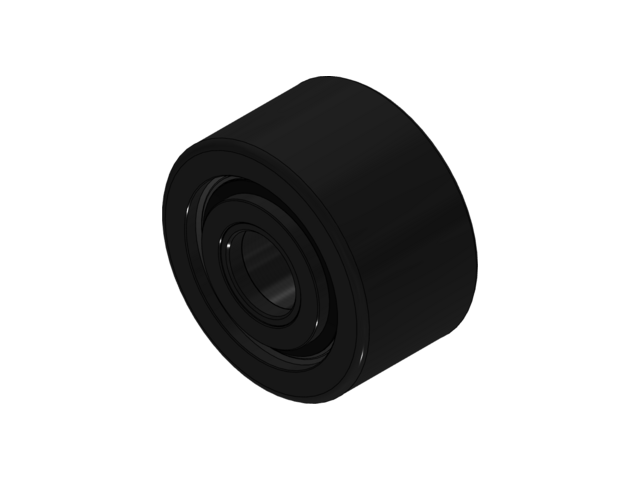

product photo phry a

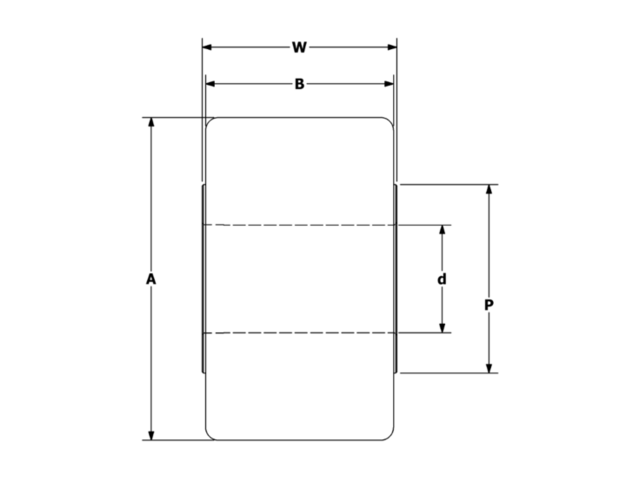

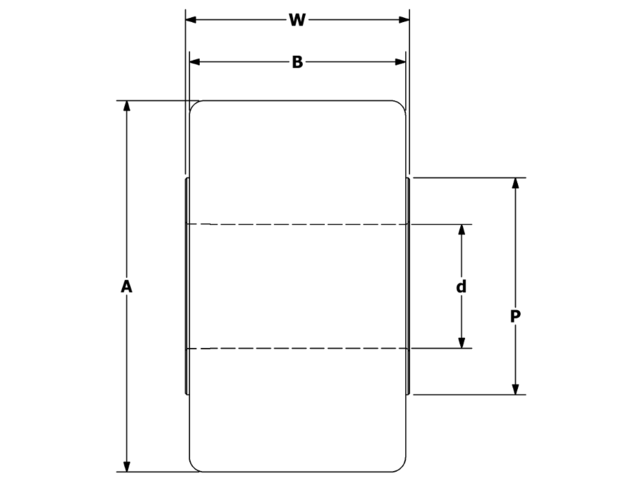

product diagram phry a

PHRY-A -Plain Yoke High Roller

$0.00

PHRY-350-A

Looks like the information for this item is currently unavailable online.

Please call our sales department at +1 (616) 842-8760 or send an email to [email protected] for more information.

Specifications

AttributeCalloutValue
Roller O.D. A 3.500 in
Roller Width B 2.000 in
Endplate Diameter P 2 in
Overall Width W 2.062 in
Bore Diameter d 1.125 in
Approx Weight 4.190 lbs
Ball(BB) or Tapered(TRB) Roller Bearing TRB
Basic Dynamic Rating 17,590 lbf
Max Static Capacity 27,200 lbf
Thrust Capacity 13,100 lbf

Custom Application

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!

Call 616.842.8760 and speak with one of our customer service reps for more information.
