PHRY-300-A

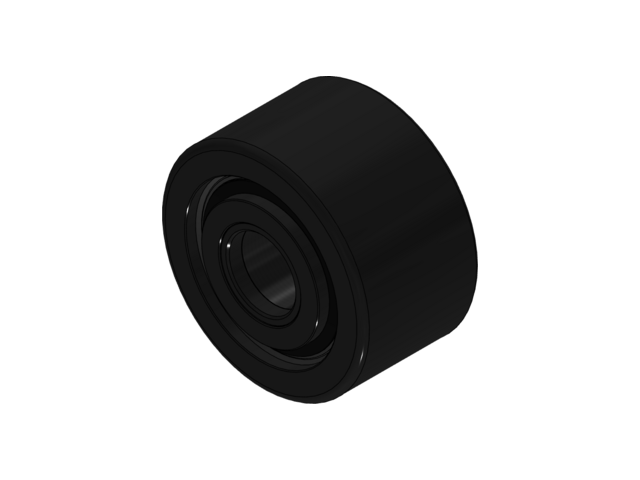

PHRY-A -Plain Yoke High Roller

PDF Download

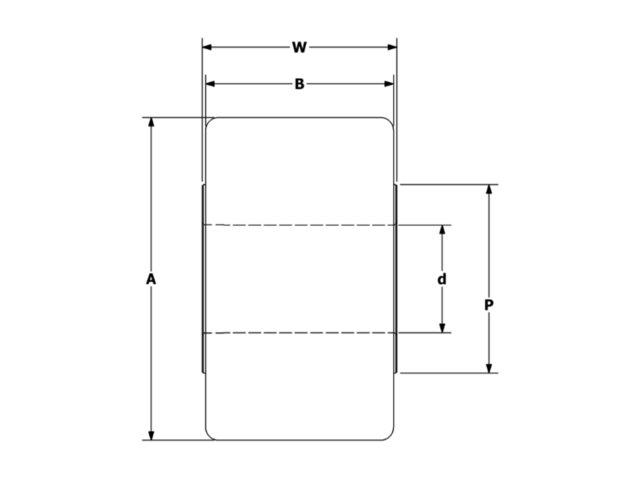

PHRY-300-A 2D CAD Drawing

Specifications

ID PHRY-300-A
Roller O.D. A 3.000
Tread Width B 1.750
Bore Diameter d 1.000
Overall Roller Width W 1.812
End Plate & Flange Diameter P 1 3/4
Max Static Capacity (lbf) 20,000
Basic Dynamic Rating (lbf) 14,270
Thrust Capacity (lbf) 12,000
Ball(BB) or Tapered(TRB) Roller Bearing TRB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
