PHRY-150-A

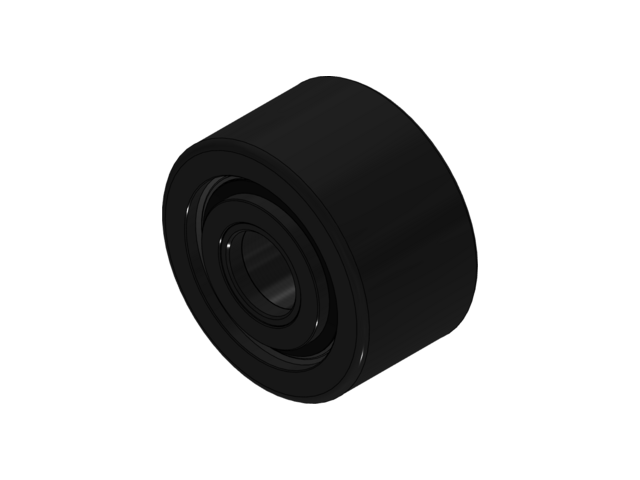

product photo phry a

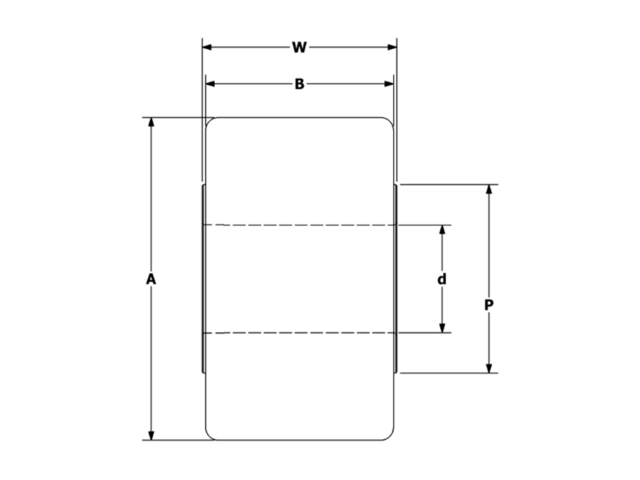

product diagram phry a

PHRY-A -Plain High Yoke Roller

PHRY-150-A

Looks like the information for this item is currently unavailable online.

Please call our sales department at +1 (616) 842-8760 or send an email to [email protected] for more information.

Specifications

AttributeCalloutValue
Roller O.D. A 1.500 in
Roller Width B 0.875 in
Endplate Diameter P 7/8 in
Overall Width W 0.937 in
Bore Diameter d 0.437 in
Ball(BB) or Tapered(TRB) Roller Bearing BB
Basic Dynamic Rating 1,850 lbf
Max Static Capacity 780 lbf
Thrust Capacity 480 lbf

Custom Application

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!

Call 616.842.8760 and speak with one of our customer service reps for more information.
