PHRY-A -Plain Yoke High Roller

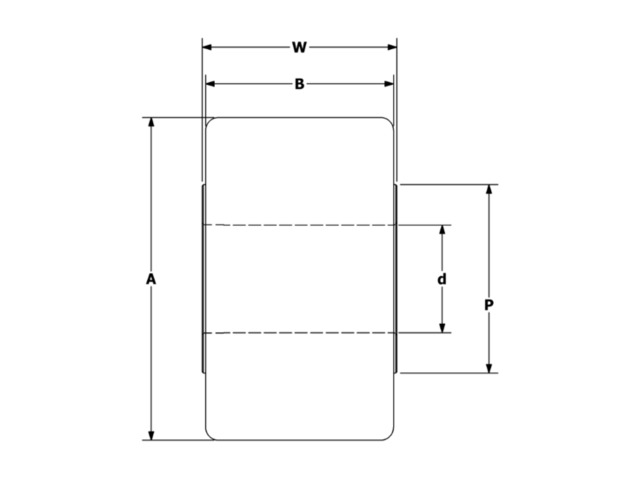

2D Drawings

PHRY-1000-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information


ID PHRY-1000-A
Roller O.D. A 10.000
Roller Width B 5.250
Bore Diameter d 4.255
Overall Width W 5.500
Endplate Diameter P 6 1/2
Max Static Capacity (lbf) 276,000
Basic Dynamic Rating (lbf) 138,240
Thrust Capacity (lbf) 196,000
Ball(BB) or Tapered(TRB) Roller Bearing TRB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
