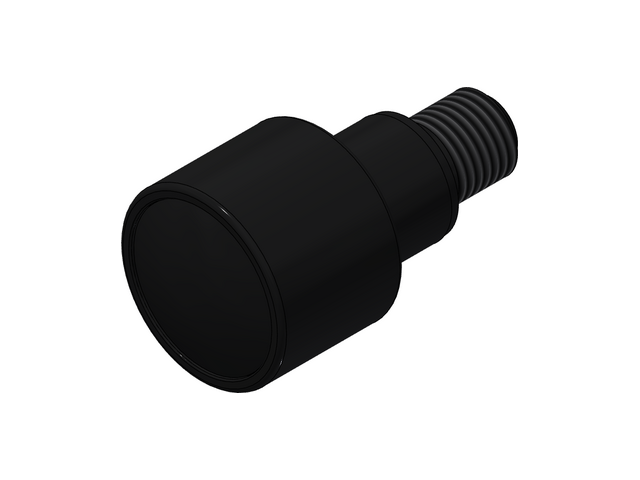

PHRE-400-A

PHRE-A -Plain High Roller Eccentric

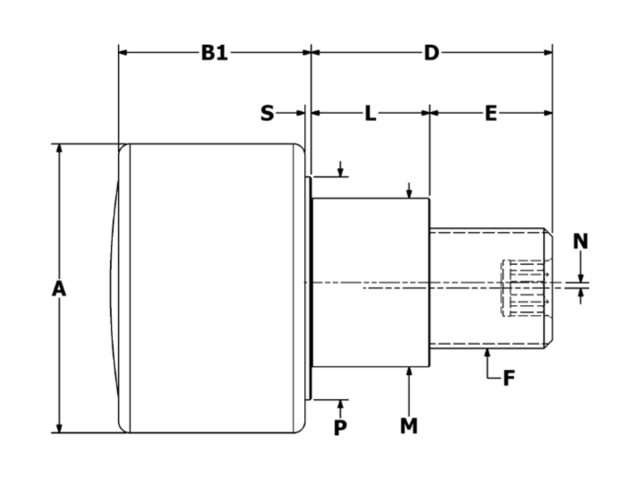

Specifications

ID PHRE-400-A
Roller O.D. A 4.000
Roller B1 2.000
Stud Length D 2.750
Thread Length E 1.395
Thread Class 2A F 1 1/4-12
Eccentric Sleeve L 1.355
Eccentric Sleeve Diameter M 1.812
Eccentric Offset N 0.060
Endplate Diameter P 2.312
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 14,270
Dynamic Thrust Load (lbf) 12,000
Max Static Capacity (lbf) 20,000
Ball(BB) or Tapered(TRB) Roller Bearing TRB
