PHRE-275-A

PHRE-A -Plain High Roller Eccentric

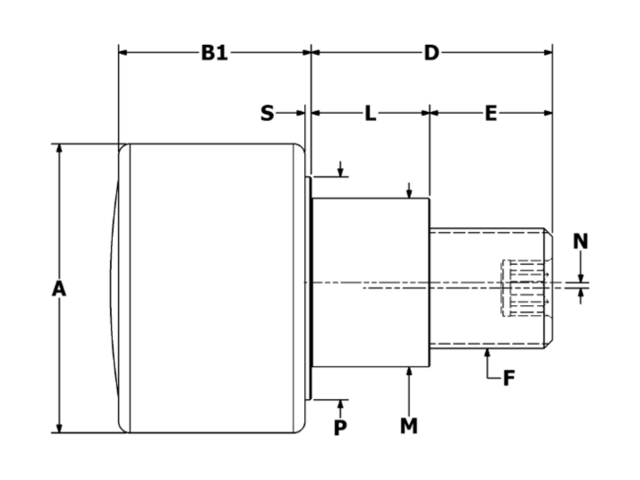

Specifications

ID PHRE-275-A
Roller O.D. A 2.750
Roller B1 1.687
Stud Length D 2.250
Thread Length E 1.145
Thread Class 2A F 1-14
Eccentric Sleeve L 1.105
Eccentric Sleeve Diameter M 1.375
Eccentric Offset N 0.030
Endplate Diameter P 1.687
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 5,190
Dynamic Thrust Load (lbf) 1,400
Max Static Capacity (lbf) 2,270
Ball(BB) or Tapered(TRB) Roller Bearing BB

Downloads

PHRE-275-A STP File

PHRE-275-A IGES File

PHRE-275-A PDF File

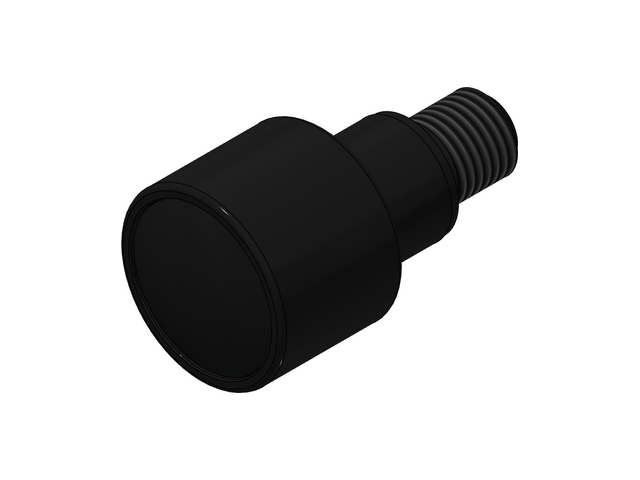

3D View
