PHRE-125-A

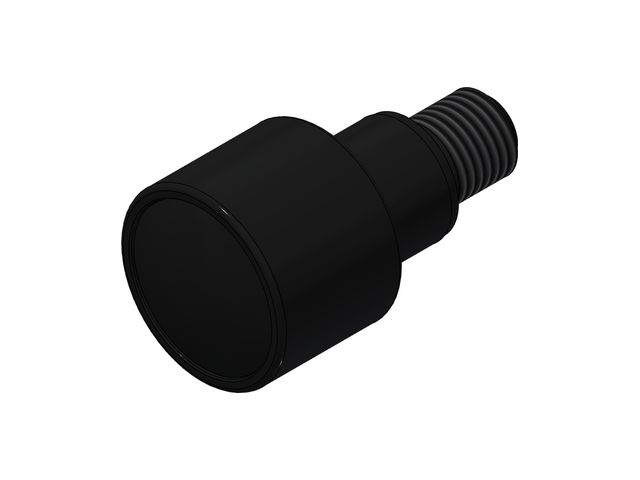

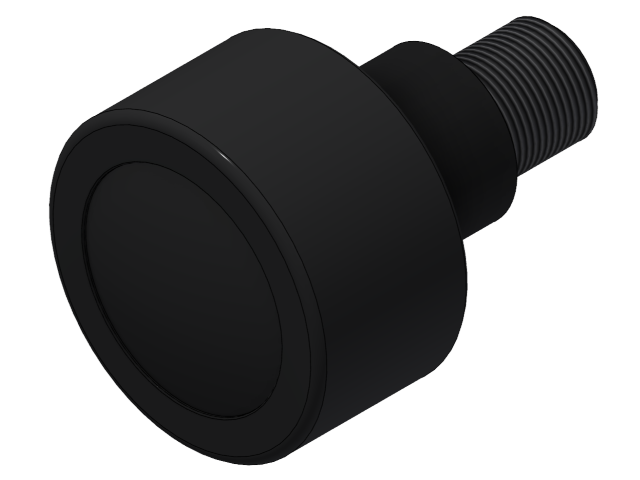

PHRE-A -Plain High Roller Eccentric

2D Drawings

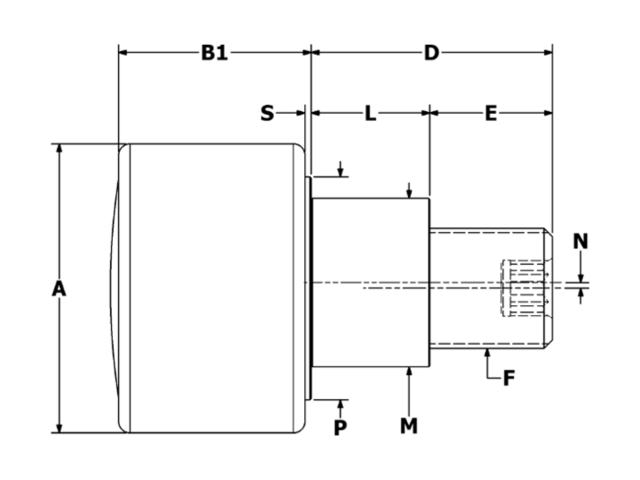

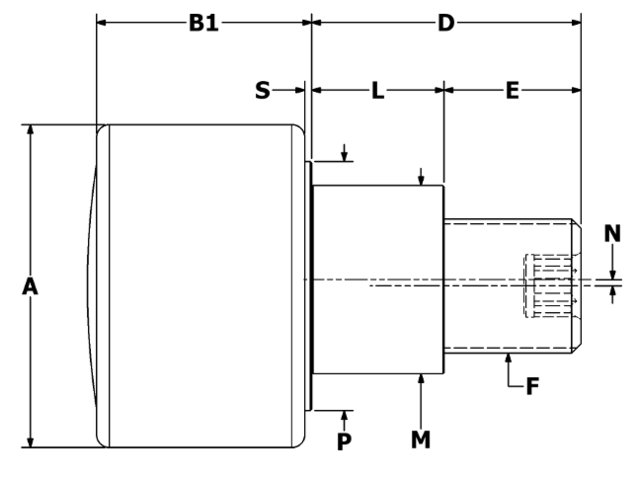

PHRE-125-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID PHRE-125-A
Roller O.D. A 1.250
Roller B1 0.844
Stud Length D 1.250
Thread Length E 0.625
Thread Class 2A F 1/2-20
Eccentric Sleeve L 0.625
Eccentric Sleeve Diameter M 0.687
Eccentric Offset N 0.030
Endplate Diameter P 0.812
Endplate Stickout S 0.031
Basic Dynamic Rating (lbf) 1,350
Dynamic Thrust Load (lbf) 370
Max Static Capacity (lbf) 600
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
