PHRE-100-A

PHRE-A -Plain High Roller Eccentric

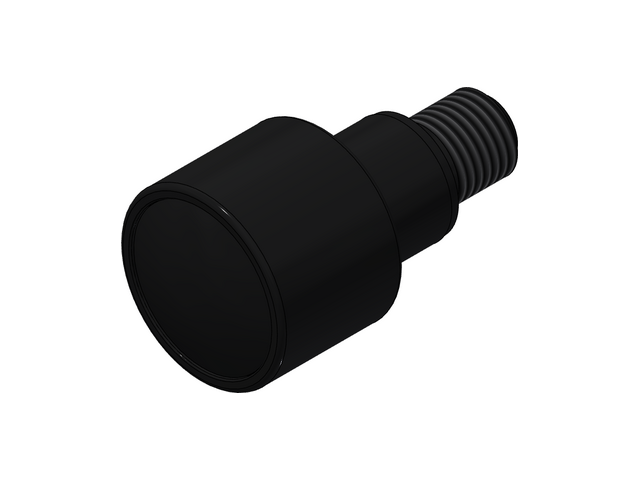

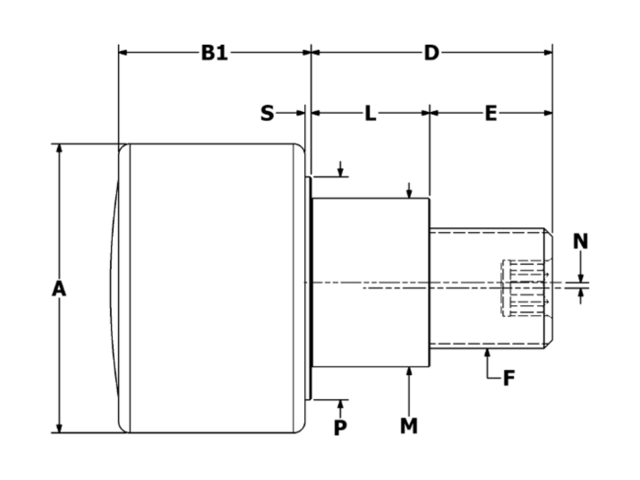

2D Drawings

PHRE-100-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID PHRE-100-A
Roller O.D. A 1.000
Roller Width B1 0.781
Stud Length D 1.000
M.E.T. E 0.500
Thread Class 2A F 7/16-20
Bushing Length L 0.500
Bushing Diameter M 0.625
Eccentric Offset N 0.030
Endplate Diameter P 0.750
Endplate Stickout S 0.031
Hex Size X 3/16
Basic Dynamic Rating (lbf) 630
Dynamic Thrust Load (lbf) 140
Max Static Capacity (lbf) 230
Torque (ft-lb) 8
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
