PHR-600-A

PHR-A -Plain High Roller

Please call 616-842-8760 for price and availability

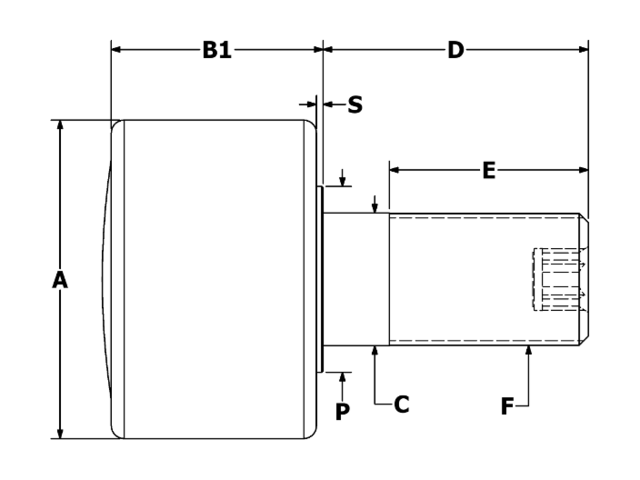

Specifications

ID PHR-600-A
Roller O.D. A 6.000
Roller B1 3.000
Stud Diameter C 2.500
Stud Length D 5.500
M.E.T. E 3 1/4
Thread Class 2A F 2 1/2-12
Endplate Diameter P 3.250
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 35,840
Dynamic Thrust Load (lbf) 33,100
Max Static Capacity (lbf) 56,400
Ball(BB) or Tapered(TRB) Roller Bearing TRB

Downloads

PHR-600-A 2D CAD Drawing

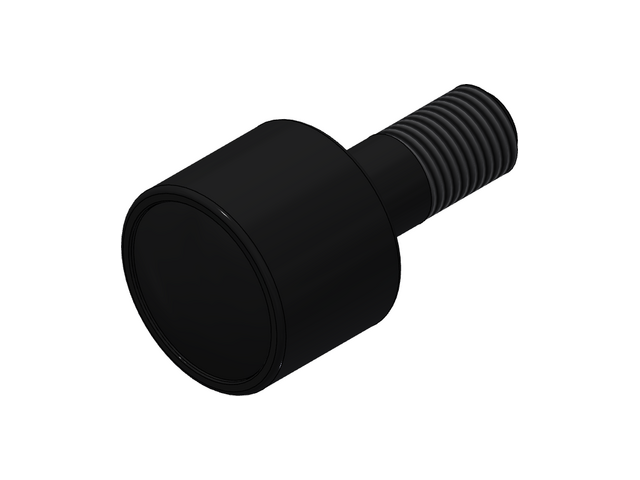

3D View
