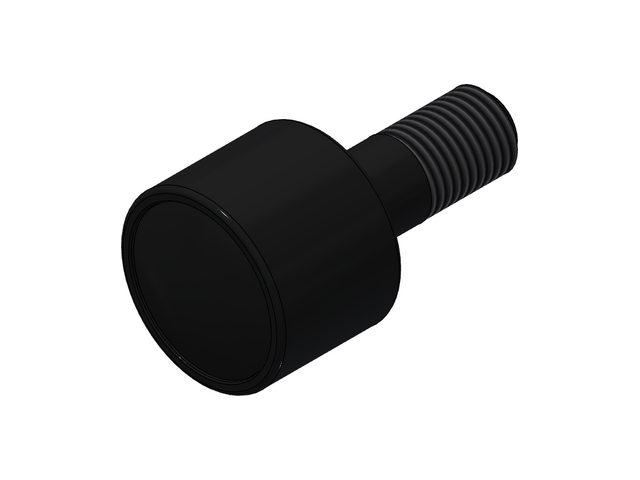

PHR-275-A

PHR-A -Plain High Roller

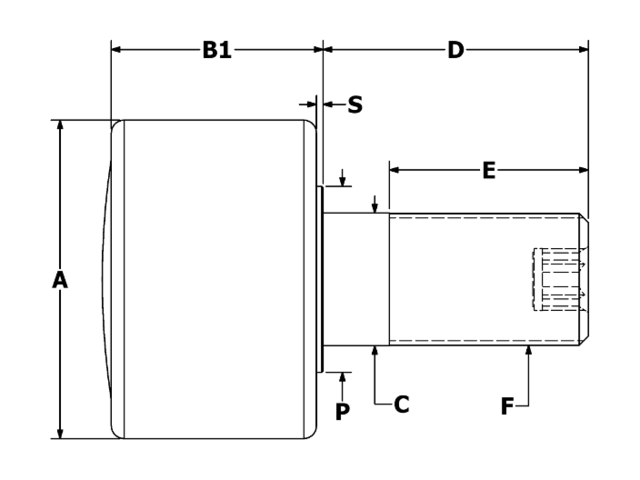

Specifications

ID PHR-275-A
Roller O.D. A 2.750
Roller B1 1.687
Stud Diameter C 1.000
Stud Length D 2.250
M.E.T. E 1 1/2
Thread Class 2A F 1-14
Endplate Diameter P 1.250
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 5,190
Dynamic Thrust Load (lbf) 1,400
Max Static Capacity (lbf) 2,270
Ball(BB) or Tapered(TRB) Roller Bearing BB

Downloads

PHR-275-A 2D CAD Drawing

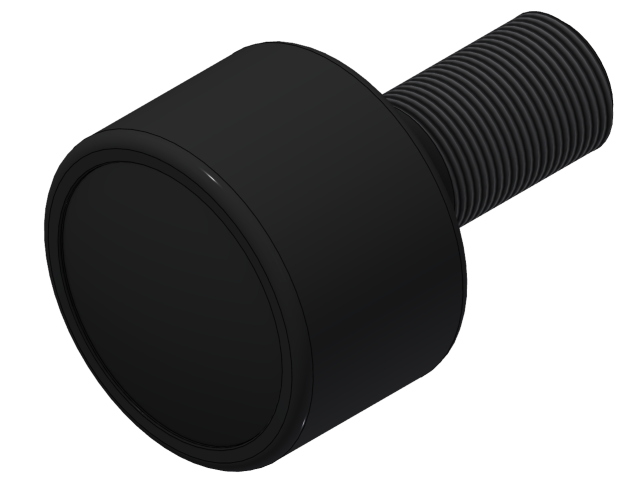

3D View
