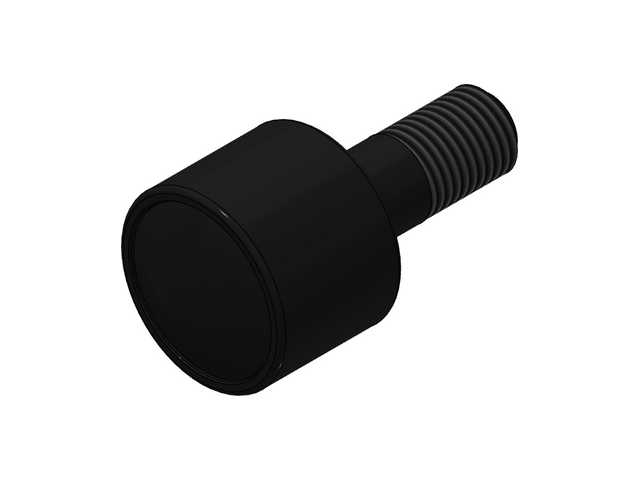

PHR-A -Plain High Roller

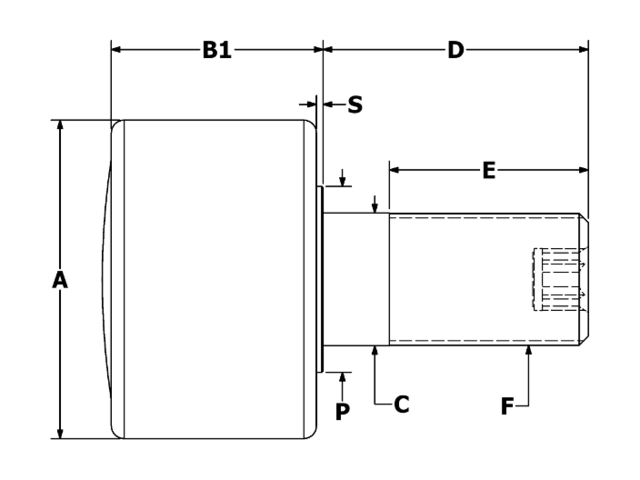

2D Drawings

PHR-175-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information


ID PHR-175-A
Roller O.D. A 1.750
Roller Width B1 1.187
Stud Diameter C 0.750
Stud Length D 1.750
M.E.T. E 7/8
Thread Class 2A F 3/4-16
Endplate Diameter P 1.000
Endplate Stickout S 0.062
Hex Size X 5/16
Basic Dynamic Rating (lbf) 2,760
Dynamic Thrust Load (lbf) 680
Max Static Capacity (lbf) 1,100
Torque (ft-lb) 25
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
