NYR-80

NYR -Standard Neverlube Cam Yolk Roller

Please call 616-842-8760 for price and availability

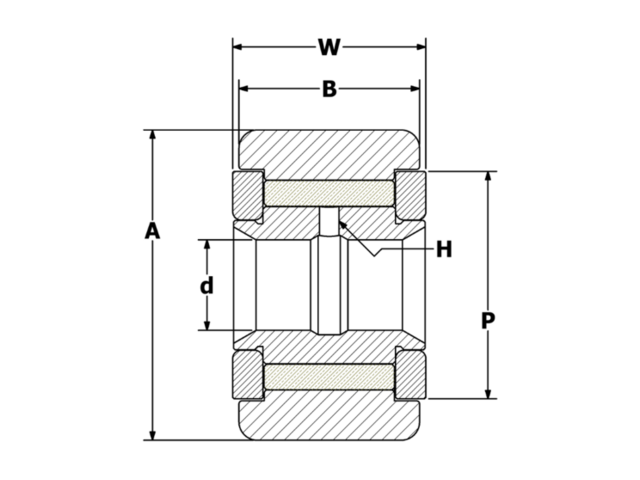

Specifications

ID NYR-80
Roller O.D. A 2.500
Roller Width B 1.500
Bore Diameter d 0.750
Overall Width W 1.5625
Oil Hole Diameter H 1/8
Min. Boss Diameter P 1 5/16
Shaft Diameter (recommended) 0.7497
Load Factor 1.406

Downloads

NYR-80 STP File

NYR-80 IGES File

NYR-80 PDF File

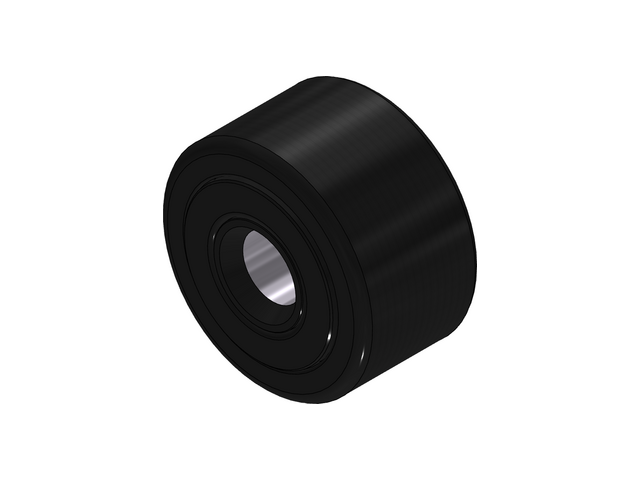

3D View
