NYR-64

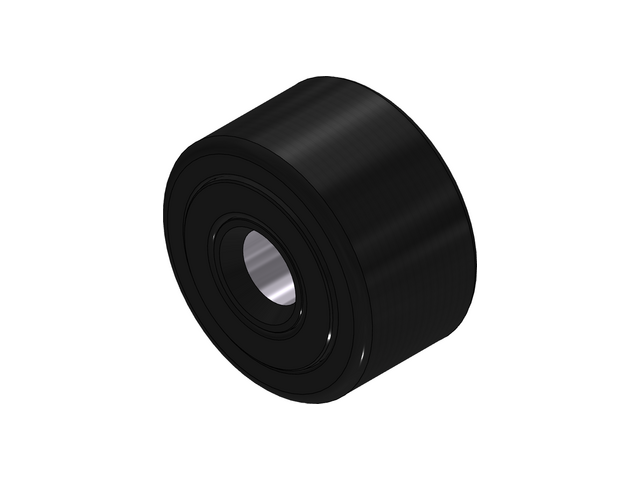

NYR -Standard Neverlube Cam Yolk Roller

Please call 616-842-8760 for price and availability

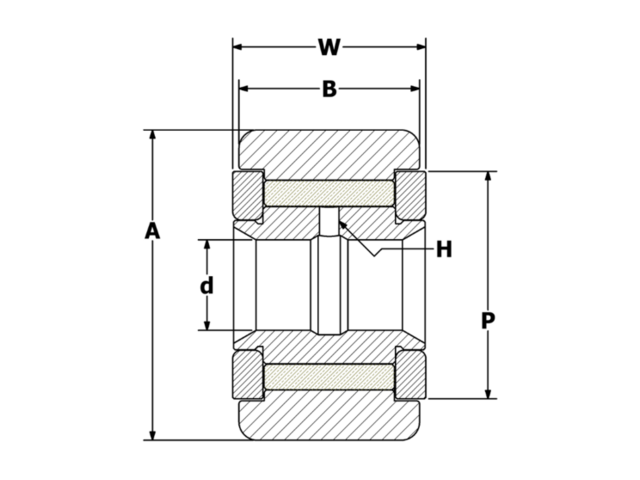

Specifications

ID NYR-64
Roller O.D. A 2.000
Roller Width B 1.250
Bore Diameter d 0.625
Overall Width W 1.3125
Oil Hole Diameter H 1/8
Min. Boss Diameter P 1 13/64
Shaft Diameter (recommended) 0.6247
Load Factor 0.928

Downloads

NYR-64 STP File

NYR-64 IGES File

NYR-64 PDF File

3D View
