NYR-56

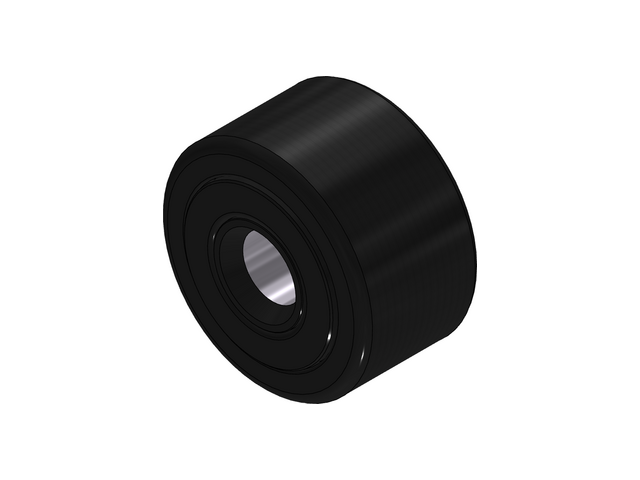

NYR -Standard Neverlube Cam Yolk Roller

Please call 616-842-8760 for price and availability

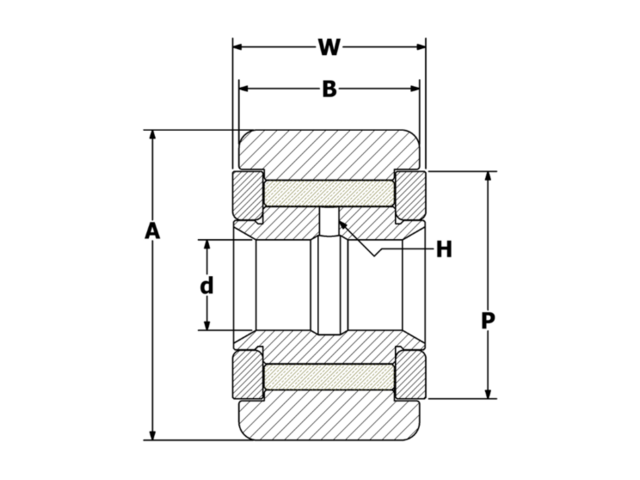

Specifications

ID NYR-56
Roller O.D. A 1.750
Roller Width B 1.000
Bore Diameter d 0.500
Overall Width W 1.0625
Oil Hole Diameter H 3/32
Min. Boss Diameter P 1 3/64
Shaft Diameter (recommended) 0.4997
Load Factor 0.650

Downloads

NYR-56 2D CAD Drawing

3D View
