NYR-48

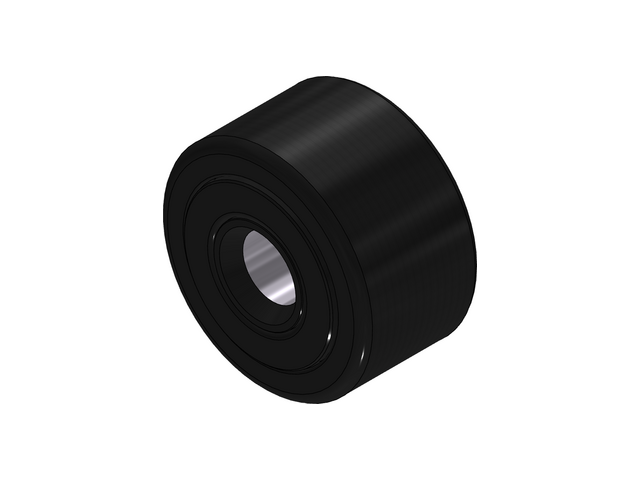

NYR -Standard Neverlube Cam Yolk Roller

Please call 616-842-8760 for price and availability

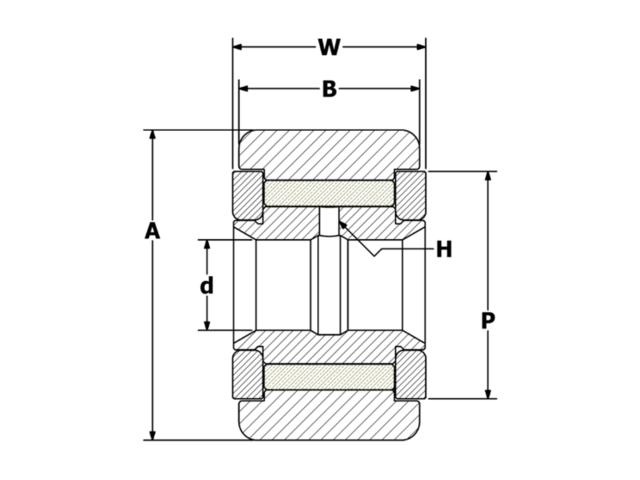

Specifications

ID NYR-48
Roller O.D. A 1.500
Roller Width B 0.875
Bore Diameter d 0.438
Overall Width W 0.9375
Oil Hole Diameter H 3/32
Min. Boss Diameter P 57/64
Shaft Diameter (recommended) 0.4372
Load Factor 0.510

Downloads

NYR-48 2D CAD Drawing

3D View
