NYR-40

NYR -Standard Neverlube Cam Yolk Roller

Please call 616-842-8760 for price and availability

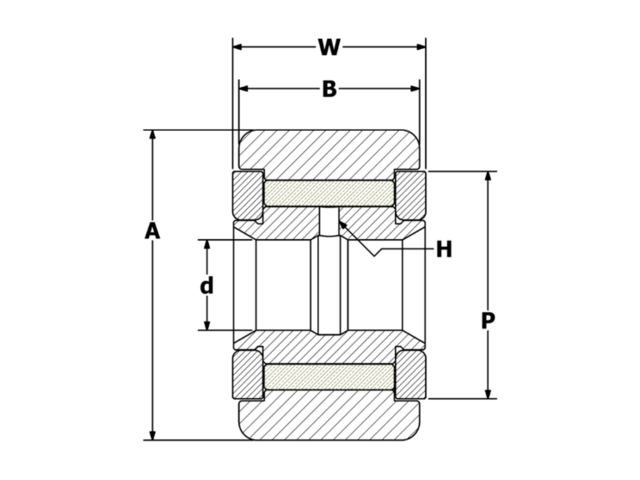

Specifications

ID NYR-40
Roller O.D. A 1.250
Roller Width B 0.750
Bore Diameter d 0.375
Overall Width W 0.8125
Oil Hole Diameter H 3/32
Min. Boss Diameter P 49/64
Shaft Diameter (recommended) 0.3747
Load Factor 0.390

Downloads

NYR-40 STP File

NYR-40 IGES File

NYR-40 PDF File

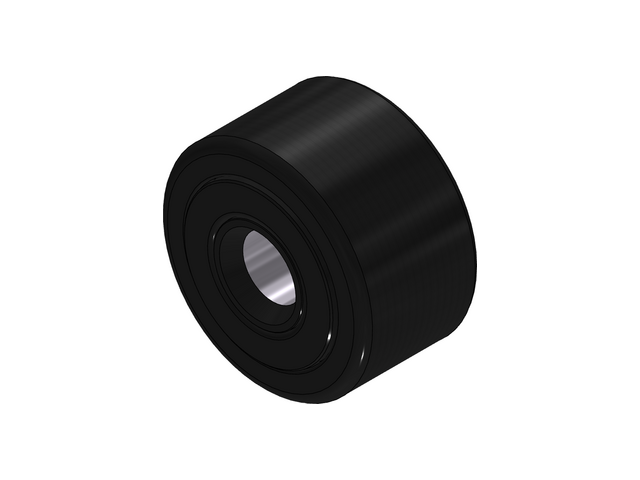

3D View
