NYR-32

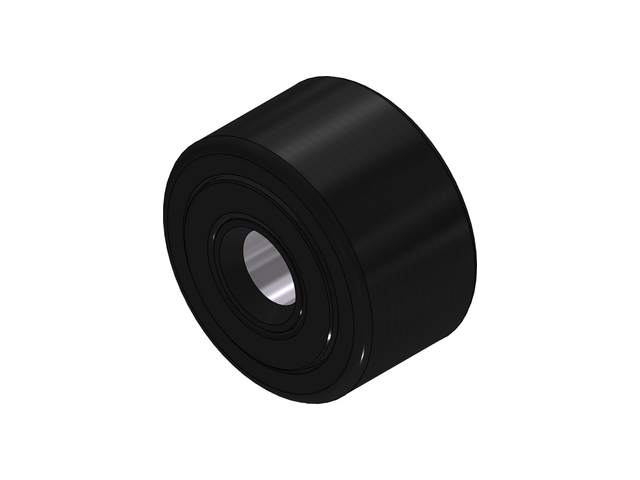

NYR -Standard Neverlube Cam Yolk Roller

Please call 616-842-8760 for price and availability

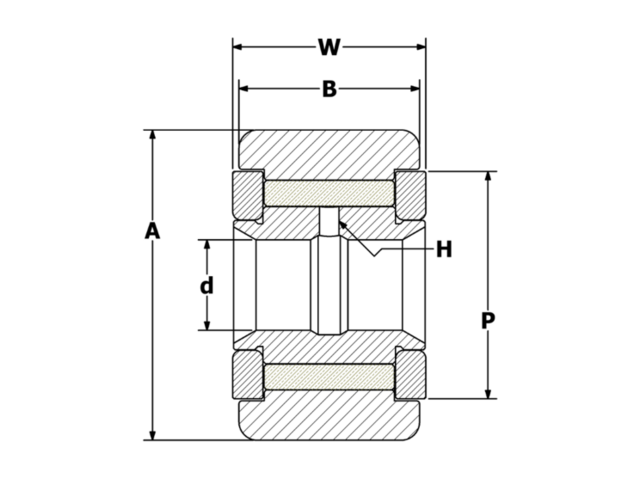

Specifications

ID NYR-32
Roller O.D. A 1.000
Roller Width B 0.625
Bore Diameter d 0.313
Overall Width W 0.6875
Oil Hole Diameter H 3/32
Min. Boss Diameter P 41/64
Shaft Diameter (recommended) 0.3122
Load Factor 0.250
