NYR-28

NYR -Standard Neverlube Cam Yolk Roller

Please call 616-842-8760 for price and availability

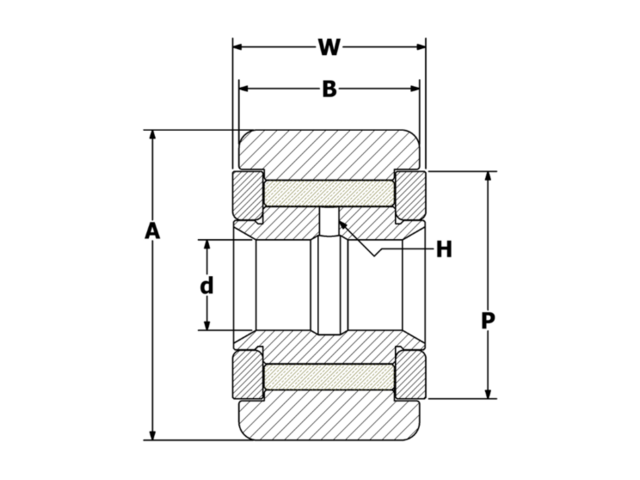

Specifications

ID NYR-28
Roller O.D. A 0.875
Roller Width B 0.500
Bore Diameter d 0.250
Overall Width W 0.5625
Oil Hole Diameter H 3/32
Min. Boss Diameter P 1/2
Shaft Diameter (recommended) 0.2497
Load Factor 0.190

Downloads

NYR-28 2D CAD Drawing

3D View
