MCNBE-72-SBX

MCNBE-SBX -Metric Hexed Eccentric Sealed Cam Follower (All Size & Tolerance in Metric)

Please call 616-842-8760 for price and availability

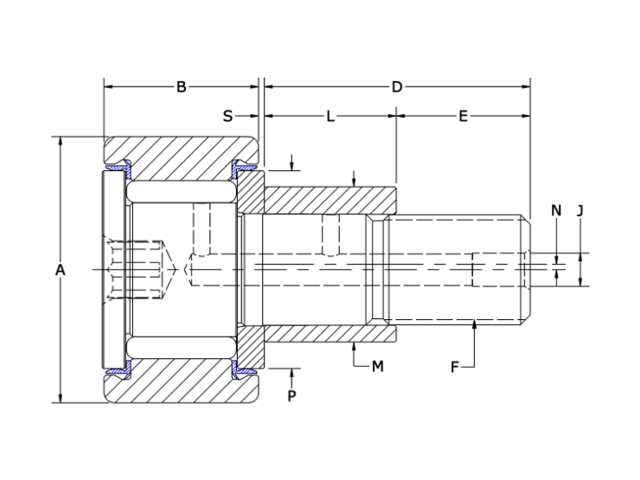

Specifications

ID MCNBE-72-SBX
Roller O.D. A 72
Roller Width B 29
Stud Length D 49.5
Thread Length E 25
Thread Class 6g F M24x1.50
Bushing Length L 22
Bushing Diameter M 28
Eccentric offset N 1.0
Oil Hole Center G 11
Oil Hole Diameter H 4
Lube Fitting Size J 8
Endplate Diameter P 38
EndPlate Stickout S 0.8
Mounting Bore Diameter (recommended) 28.050
**Recom. Torque Nm 216
Basic Dynamic Rating (newtons) 38,840
Max Static Capacity (newtons) 65,400
