MCNBE-40-SB

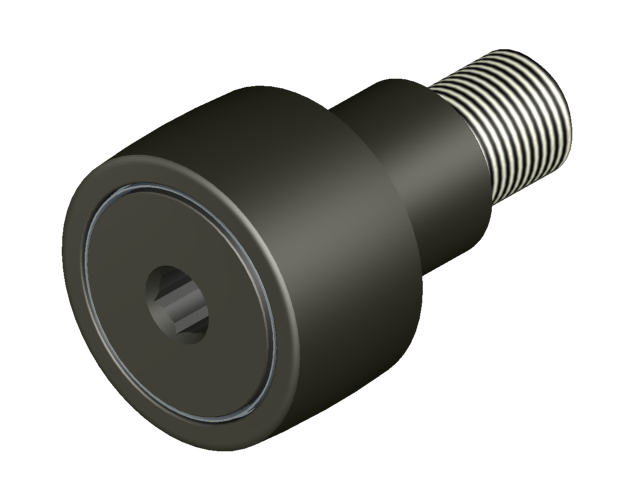

MCNBE-SB -Metric Crowned Hexed Eccentric Sealed Cam Follower (All Size & Tolerance in Metric)

Please call 616-842-8760 for price and availability

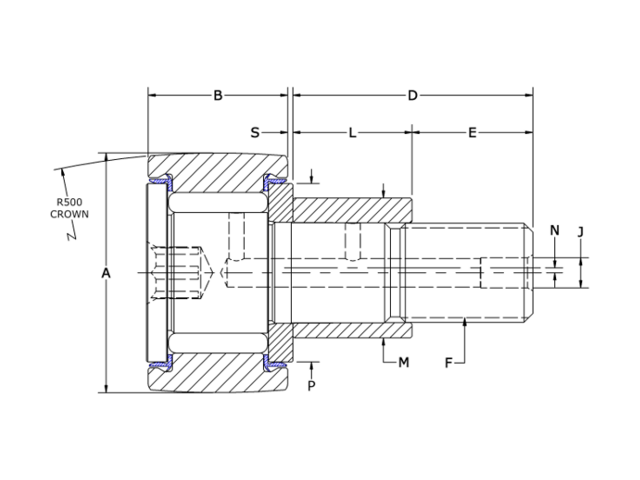

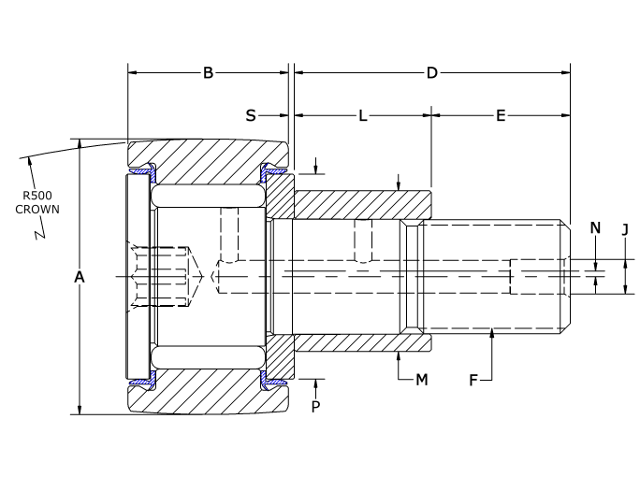

Specifications

ID MCNBE-40-SB
Roller O.D. A 40
Roller Width B 20
Stud Length D 36.5
Thread Length E 19
Thread Class 6g F M18x1.50
Bushing Length L 16
Bushing Diameter M 22
Eccentric offset N 1.0
Oil Hole Center G 8
Oil Hole Diameter H 3
Lube Fitting Size J 6
Endplate Diameter P 27
EndPlate Stickout S 0.8
Mounting Bore Diameter (recommended) 22.050
**Recom. Torque Nm 85
Basic Dynamic Rating (newtons) 19,420
Max Static Capacity (newtons) 32,200
