MCNBE-35-SBX

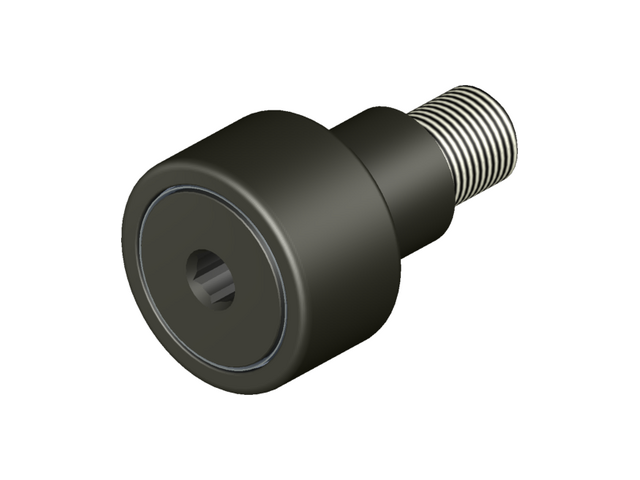

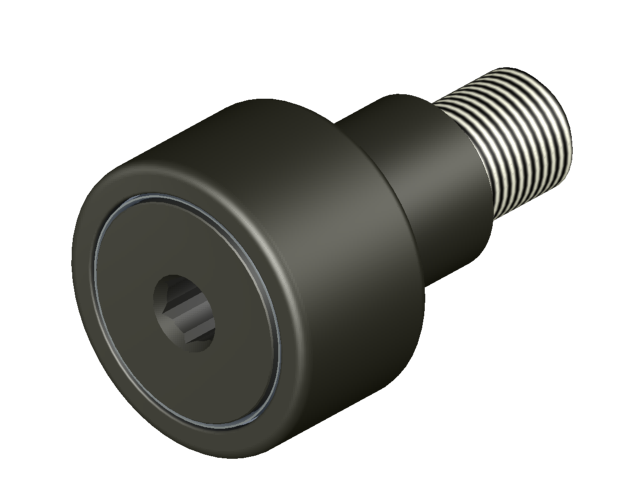

MCNBE-SBX -Metric Hexed Eccentric Sealed Cam Follower (All Size & Tolerance in Metric)

2D Drawings

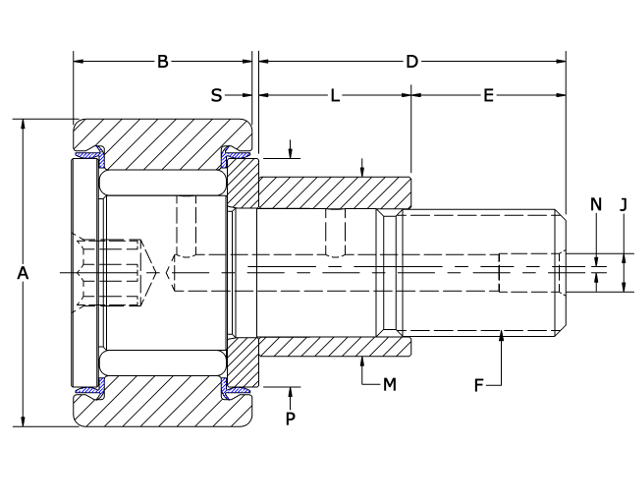

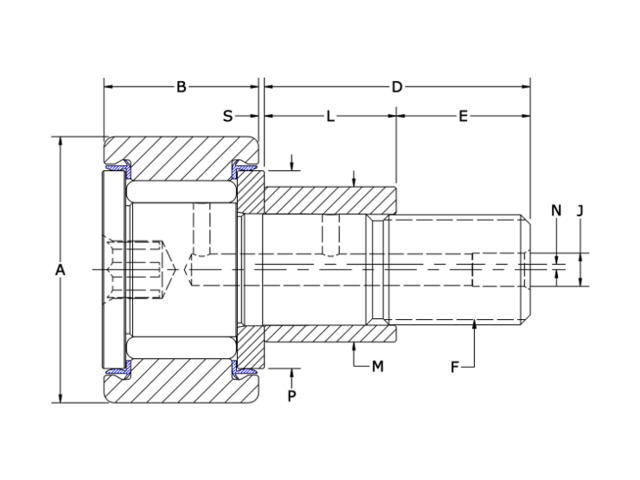

MCNBE-35-SBX 2D CAD Drawing

Specifications

ID MCNBE-35-SBX
Roller O.D. A 35
Roller Width B 18
Stud Length D 32.5
Thread Length E 18
Thread Class 6g F M16x1.50
Bushing Length L 14
Bushing Diameter M 20
Eccentric offset N 1.0
Oil Hole Center G 8
Oil Hole Diameter H 3
Lube Fitting Size J 6
Endplate Diameter P 24
EndPlate Stickout S 0.8
Mounting Bore Diameter (recommended) 20.050
**Recom. Torque Nm 28.5
Basic Dynamic Rating (newtons) 16,970
Max Static Capacity (newtons) 28,500
Limiting Speed (RPM) 4,200

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
