MCNBE-30-SBX

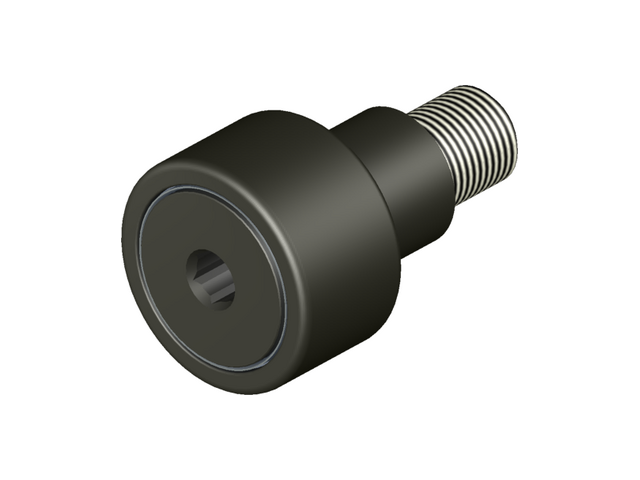

MCNBE-SBX -Metric Hexed Eccentric Sealed Cam Follower (All Size & Tolerance in Metric)

2D Drawings

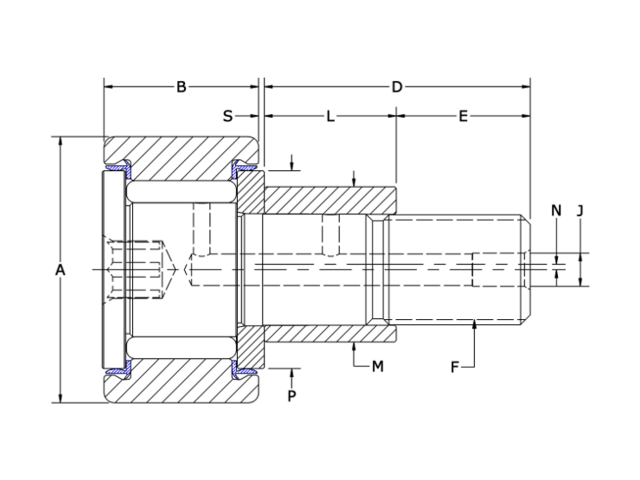

MCNBE-30-SBX 2D CAD Drawing

Specifications

ID MCNBE-30-SBX
Roller O.D. A 30
Roller Width B 14
Stud Length D 25
Thread Length E 14
Thread Class 6g F M12x1.50
Bushing Length L 11
Bushing Diameter M 15
Eccentric offset N 0.5
Oil Hole Center G 6
Oil Hole Diameter H 3
Lube Fitting Size J 6
Endplate Diameter P 19
EndPlate Stickout S 0.6
Mounting Bore Diameter (recommended) 15.050
**Recom. Torque Nm 11
Basic Dynamic Rating (newtons) 11,080
Max Static Capacity (newtons) 15,300
Limiting Speed (RPM) 6,400

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
