MCNBE-22-SBX

MCNBE-SBX -Metric Hexed Eccentric Sealed Cam Follower (All Size & Tolerance in Metric)

Please call 616-842-8760 for price and availability

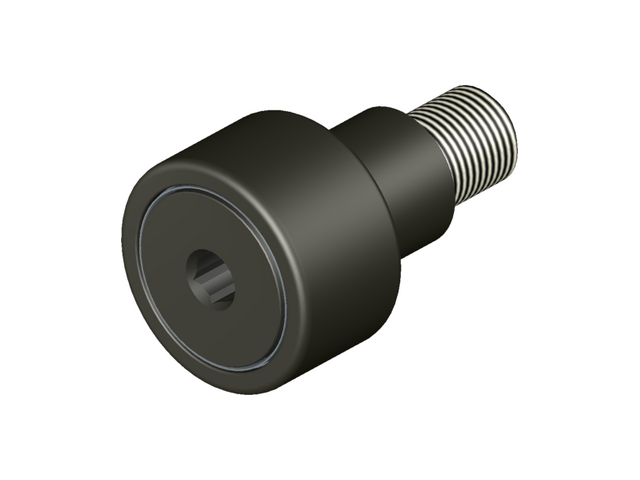

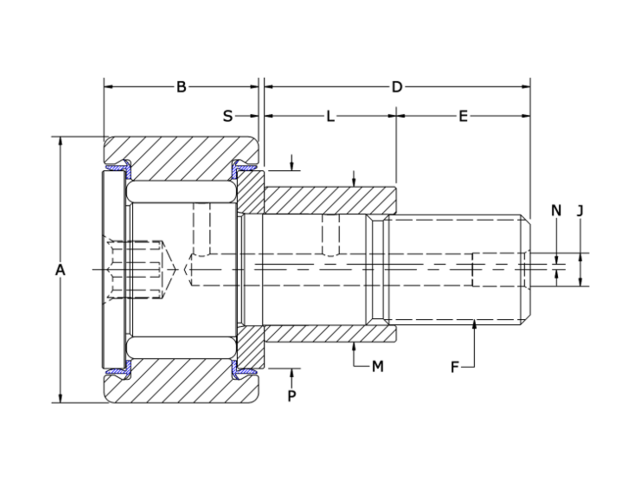

Specifications

ID MCNBE-22-SBX
Roller O.D. A 22
Roller Width B 12
Stud Length D 23
Thread Length E 12
Thread Class 6g F M10x1.00
Bushing Length L 10
Bushing Diameter M 13
Eccentric offset N 0.5
Oil Hole Center G -
Oil Hole Diameter H -
Lube Fitting Size J 4
Endplate Diameter P 15
EndPlate Stickout S 0.6
Mounting Bore Diameter (recommended) 13.050
**Recom. Torque Nm 15
Basic Dynamic Rating (newtons) 7,850
Max Static Capacity (newtons) 10,400
