MCNBE-16-SB

MCNBE-SB -Metric Crowned Hexed Eccentric Sealed Cam Follower (All Size & Tolerance in Metric)

Please call 616-842-8760 for price and availability

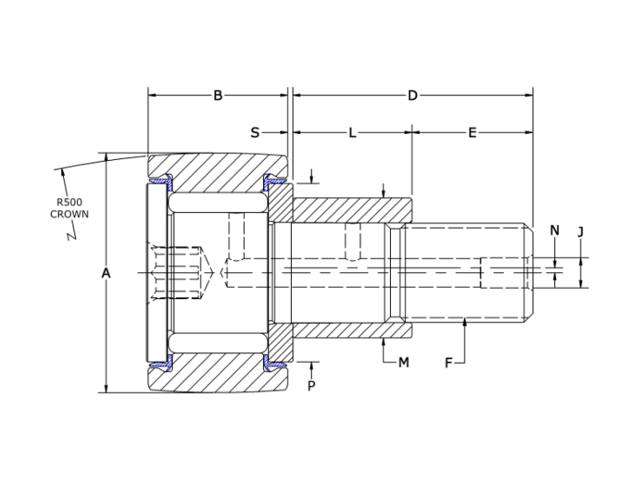

Specifications

ID MCNBE-16-SB
Roller O.D. A 16
Roller Width B 11
Stud Length D 16
Thread Length E 9
Thread Class 6g F M6x1.00
Bushing Length L 7
Bushing Diameter M 9
Eccentric offset N 0.5
Oil Hole Center G -
Oil Hole Diameter H -
Lube Fitting Size J -
Endplate Diameter P 11
EndPlate Stickout S 0.6
Mounting Bore Diameter (recommended) 9.050
**Recom. Torque Nm 3
Basic Dynamic Rating (newtons) 5,790
Max Static Capacity (newtons) 2,350

Downloads

MCNBE-16-SB STP File

MCNBE-16-SB IGES File

MCNBE-16-SB PDF File

3D View
