MCNB-SBX -Metric Hexed Sealed Cam Follower (All Size & Tolerance in Metric)

2D Drawings

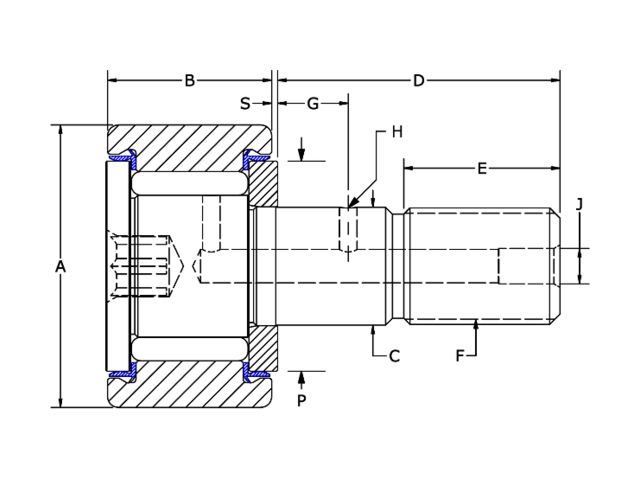

MCNB-62-SBX 2D CAD Drawing


Roller O.D. A 62
Roller Width B 29
Stud Diameter C 24
Stud Length D 49.5
M.E.T. E 25
Thread Class 6g F M24x1.50
Oil Hole Center G 11
Oil Hole Diameter H 4
Lube Fitting Size J 8
Endplate Diameter P 38
EndPlate Stickout S 0.8
Mounting Bore Diameter (recommended) 24
**Recom. Torque Nm 108
Basic Dynamic Rating (newtons) 38,840
Max Static Capacity (newtons) 65,400
Limiting Speed (RPM) 2,100

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
