MCNB-SBX -Metric Hexed Sealed Cam Follower (All Size & Tolerance in Metric)

2D Drawings

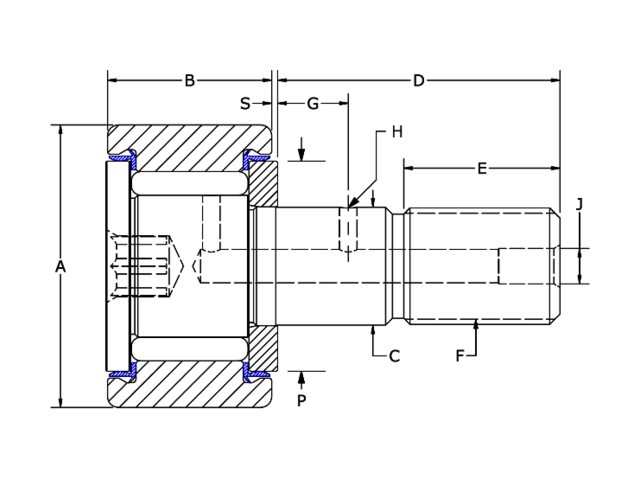

MCNB-47-SBX 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information


Roller O.D. A 47
Roller Width B 24
Stud Diameter C 20
Stud Length D 40.5
M.E.T. E 21
Thread Class 6g F M20x1.50
Oil Hole Center G 9
Oil Hole Diameter H 4
Lube Fitting Size J 8
Endplate Diameter P 30
EndPlate Stickout S 0.8
Hex Size X 10
Mounting Bore 20
Torque (Nm) 59
Basic Dynamic Rating (newtons) 25,690
Max Static Capacity (newtons) 46,700
Limiting Speed (RPM) 2,600

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
