MCNB-40-SBX

MCNB-SBX -Metric Hexed Sealed Cam Follower (All Size & Tolerance in Metric)

Please call 616-842-8760 for price and availability

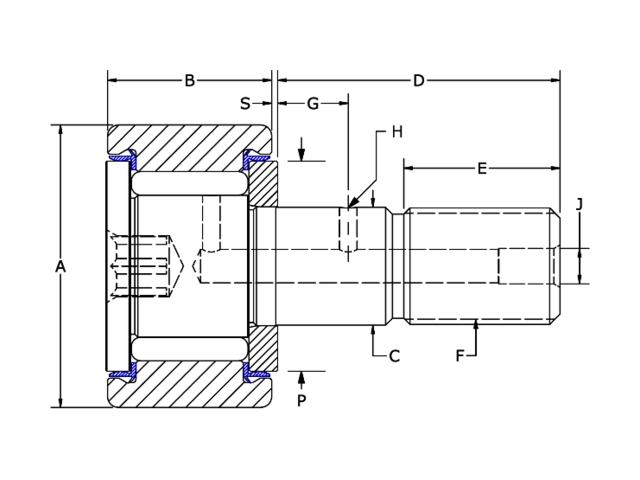

Specifications

ID MCNB-40-SBX
Roller O.D. A 40
Roller Width B 20
Stud Diameter C 16
Stud Length D 36.5
M.E.T. E 19
Thread Class 6g F M18x1.50
Oil Hole Center G 8
Oil Hole Diameter H 3
Lube Fitting Size J 6
Endplate Diameter P 27
EndPlate Stickout S 0.8
Mounting Bore Diameter (recommended) 16
**Recom. Torque Nm 85
Basic Dynamic Rating (newtons) 19,420
Max Static Capacity (newtons) 32,200
