MCNB-26-SBX

MCNB-SBX -Metric Hexed Sealed Cam Follower (All Size & Tolerance in Metric)

Please call 616-842-8760 for price and availability

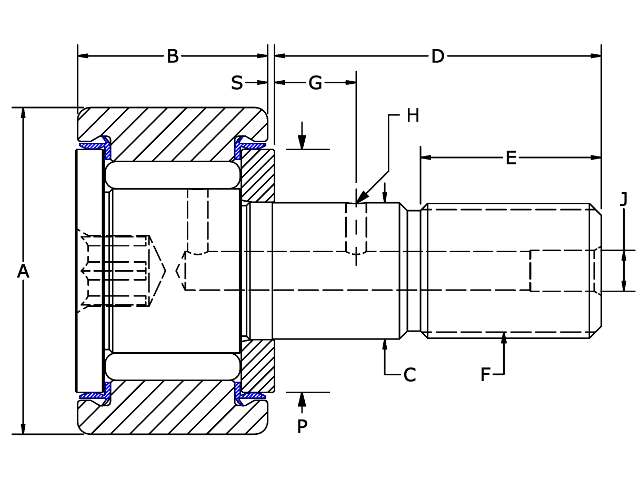

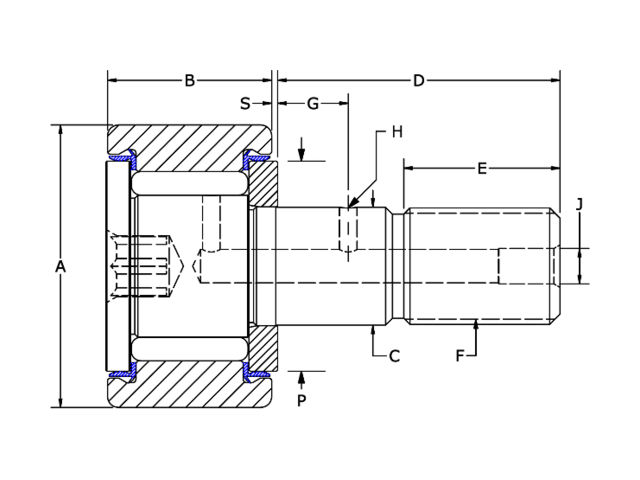

Specifications

ID MCNB-26-SBX
Roller O.D. A 26
Roller Width B 12
Stud Diameter C 10
Stud Length D 23
M.E.T. E 12
Thread Class 6g F M10x1.00
Oil Hole Center G -
Oil Hole Diameter H -
Lube Fitting Size J 4
Endplate Diameter P 15
EndPlate Stickout S 0.6
Mounting Bore Diameter (recommended) 10
**Recom. Torque Nm 15
Basic Dynamic Rating (newtons) 7,850
Max Static Capacity (newtons) 10,400
