MCNB-19-SBX

MCNB-SBX -Metric Hexed Sealed Cam Follower (All Size & Tolerance in Metric)

Please call 616-842-8760 for price and availability

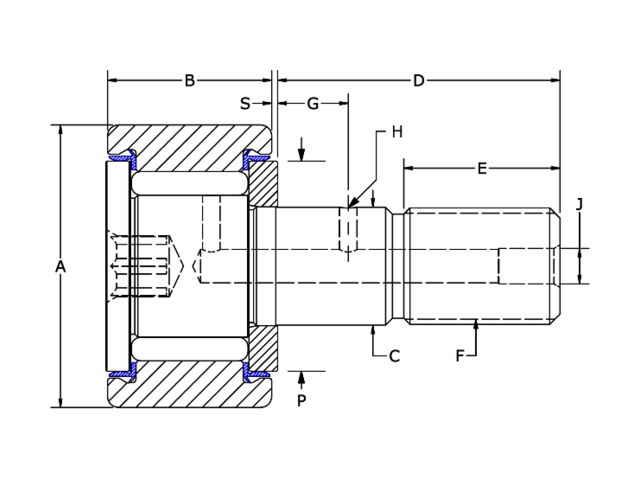

Specifications

ID MCNB-19-SBX
Roller O.D. A 19
Roller Width B 11
Stud Diameter C 8
Stud Length D 20
M.E.T. E 11
Thread Class 6g F M8x1.25
Oil Hole Center G -
Oil Hole Diameter H -
Lube Fitting Size J -
Endplate Diameter P 13
EndPlate Stickout S 0.6
Mounting Bore Diameter (recommended) 8
**Recom. Torque Nm 8
Basic Dynamic Rating (newtons) 6,670
Max Static Capacity (newtons) 5,100

Downloads

MCNB-19-SBX STP File

MCNB-19-SBX IGES File

MCNB-19-SBX PDF File

3D View
